JN0-637 Exam Questions & Answers

Correct Answer: B

A virtual router instance allows for independent routing tables, which helps manage asymmetric routing issues in APBR configurations. This ensures both initial and return traffic follow the same path, resolving session issues. Further details: Juniper APBR Configuration.

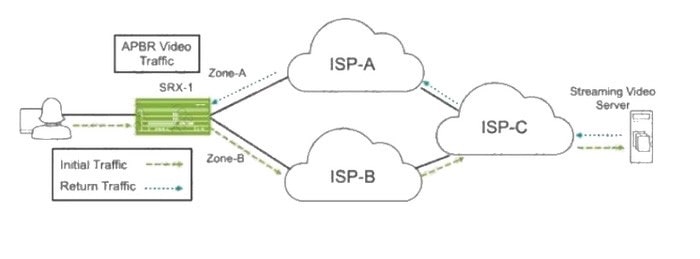

The issue in the scenario stems from asymmetric routing. The SRX-1 device sends streaming traffic to ISP-B (as intended) using APBR, but the return traffic is coming back through ISP-A due to the default route. Because APBR uses forwarding instances, the traffic is dropped when it returns through a different zone.

To solve this: Change APBR routing instance to a virtual router (Answer B): By changing the APBR routing instance to a virtual router, the SRX will maintain separate routing tables for each ISP, ensuring proper bidirectional traffic flow. Virtual routers provide independent routing tables and are ideal for ensuring traffic symmetry in multi-homed environments. Example Command: bash Copy code set routing-instances ISP-B instance-type virtual-router set routing-instances ISP-B routing-options static route 0.0.0.0/0 next-hop 192.0.2.1 By implementing virtual routing instances, you can resolve the asymmetry and ensure that both outbound and return traffic use the same ISP.

Correct Answer: D

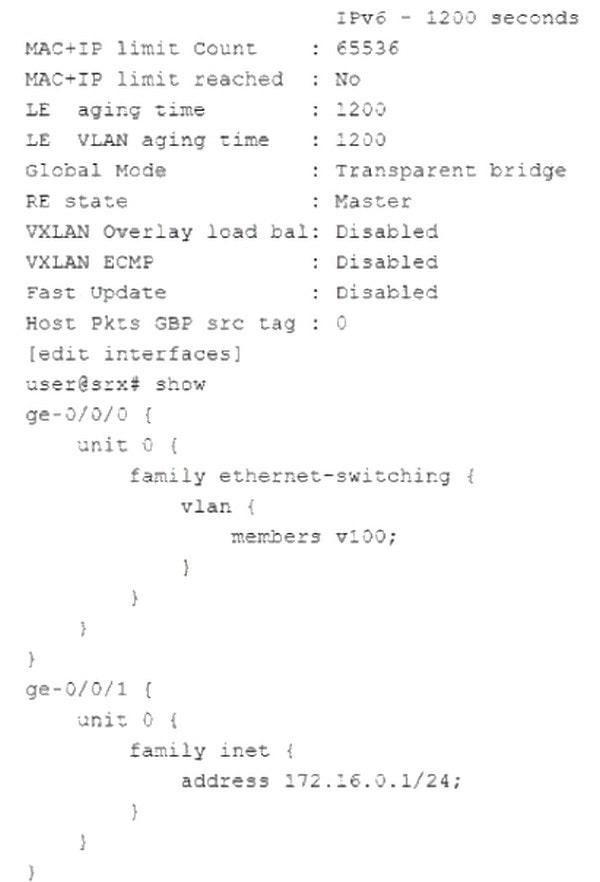

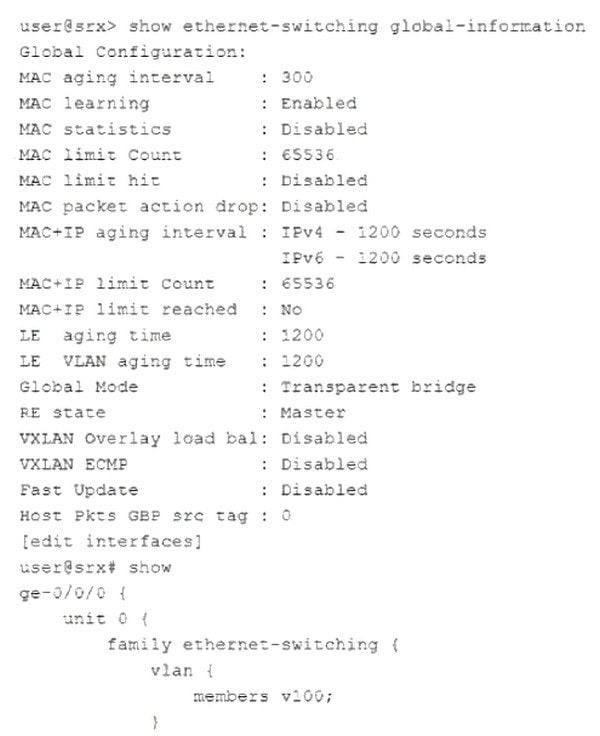

The exhibit shows that the Global Mode of the SRX Series device is set to "Transparent bridge." This means the device is operating in transparent mode . In this mode, the SRX Series device acts like a Layer 2 bridge, forwarding traffic based

on MAC addresses and not performing any Layer 3 (IP) routing or firewalling.

In transparent mode , the SRX device is effectively invisible to the network at the IP layer, and it bridges traffic between Ethernet interfaces without needing to assign IP addresses to those interfaces. This mode is typically used when you

want the SRX to act as a firewall without making any changes to the network's routing configuration.

Key Indicators from the Exhibit:

Global Mode: Transparent bridge: This confirms that the device is configured in transparent mode.

MAC learningand Ethernet Switching options are enabled, which aligns with transparent mode functionality where the device learns MAC addresses and switches traffic between VLANs.

Juniper Security Reference:

Transparent Mode Overview: Transparent mode is used to deploy a firewall in Layer 2 mode, where it bridges traffic between VLANs without being an IP routing device. Reference: Juniper Networks Transparent Mode Documentation.

Correct Answer: AC

of Answer A (Session Reclassification):

APBR (Advanced Policy-Based Routing) requires the session to be classified based on the specified rule, which can change midstream as additional packets are processed. If the session was already established before the APBR rule took

effect, the traffic may not be correctly reclassified to match the new APBR rule, leading to IDP (Intrusion Detection and Prevention) processing instead of being bypassed. This can occur especially when the session was already established

before the rule change.

of Answer C (Application Services Bypass):

For APBR to work and bypass the IDP service, the application services bypass must be explicitly configured. Without this configuration, the APBR rule may redirect the traffic, but the IDP service will still inspect and potentially drop the traffic.

This is especially important for traffic destined for specific sites like social media platforms where bypassing IDP is desired.

Example configuration for bypassing IDP services:

bash

Copy code

set security forwarding-options advanced-policy-based-routing profile application-services- bypass

Step-by-Step Resolution:

Reclassify the Session Midstream:

If the traffic was already being processed before the APBR rule was applied, ensure that the session is reclassified by terminating the current session or ensuring the APBR rule is applied from the start.

Command to clear the session:

bash

Copy code

clear security flow session destination-prefix

Configure Application Services Bypass:

Ensure that the APBR rule includes the application services bypass configuration to properly bypass IDP or any other security services for traffic that should not be inspected.

Example configuration:

bash

Copy code

set security forwarding-options advanced-policy-based-routing profile application-services- bypass

Juniper Security Reference:

Session Reclassification in APBR: APBR requires reclassification of sessions in real-time to ensure midstream packets are processed by the correct rule. This is crucial when policies change dynamically or new rules are added. Application

Services Bypass in APBR: This feature ensures that security services such as IDP are bypassed for traffic that matches specific APBR rules. This is essential for applications where performance is a priority and security inspection is not

necessary.
