Correct Answer: D

Aggressive mode is required when an IP address is dynamically assigned, such as through DHCP, as it allows for faster establishment with less identity verification. More details are available in Juniper IKE and IPsec Configuration Guide.

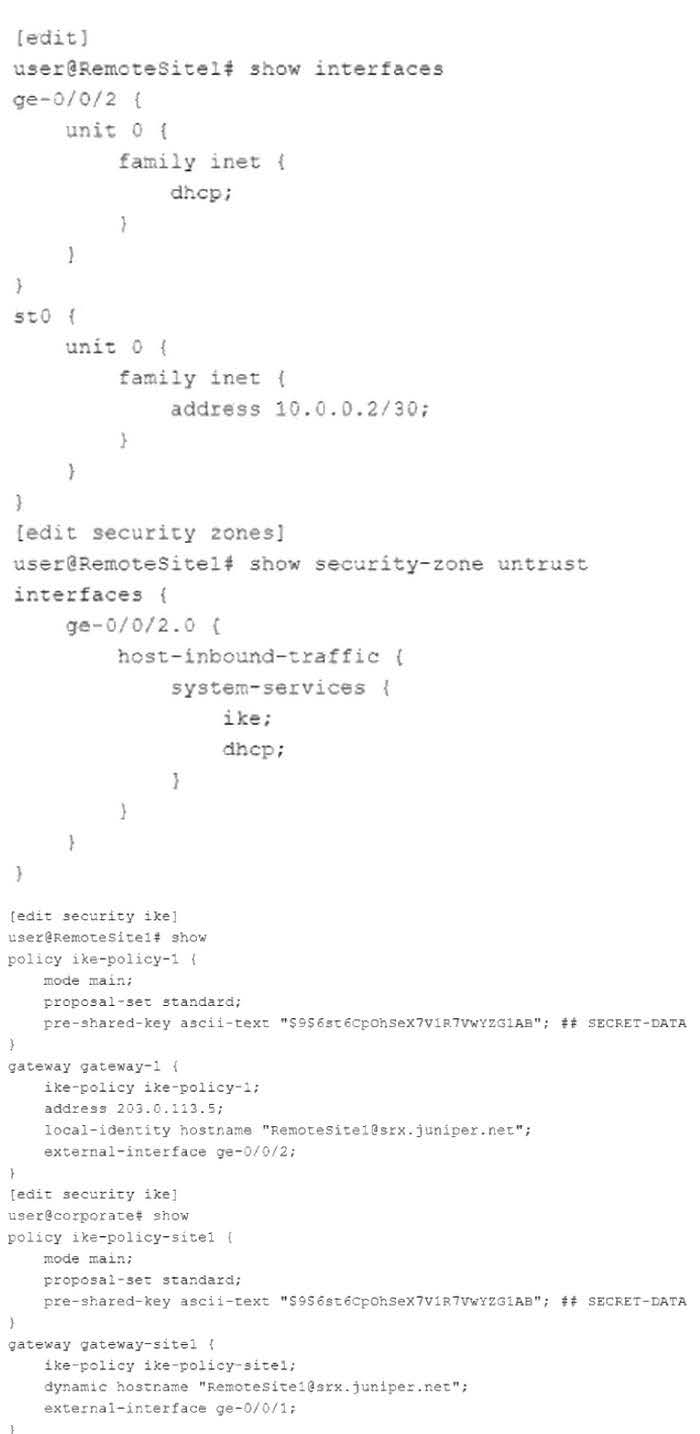

The configuration shown in the exhibit highlights that the RemoteSite1 SRX Series device is using DHCP to obtain an IP address for its external interface (ge-0/0/2). This introduces a challenge in IPsec VPN configurations when the public IP

address of the remote site is not static, as is the case here.

Aggressive modein IKE (Internet Key Exchange) is designed for situations where one or both peers have dynamically assigned IP addresses. In this scenario, aggressive mode allows the devices to exchange identifying information, such as

hostnames, rather than relying on static IP addresses, which is necessary when the remote peer (RemoteSite1) has a dynamic IP from DHCP. Correct Action (D): Changing the IKE policy mode to aggressive will resolve the issue by allowing

the two devices to establish the VPN even though one of them is using DHCP. In aggressive mode, the initiator can present its identity (hostname) during the initial handshake, enabling the VPN to be established successfully.

Incorrect Options:

Option A: Changing the external interface to st0.0 is incorrect because the st0 interface is used for the tunnel interface, not for the IKE negotiation.

Option B: Changing to IKE version 2 would not resolve the dynamic IP issue directly, and IKEv1 works in this scenario.

Option C: Changing the IKE proposal set to basic doesn't address the dynamic IP challenge in this scenario.

Juniper References:

Juniper IKE and VPN Documentation: Provides details on when to use aggressive mode, especially when a dynamic IP address is involved.

Correct Answer: BD

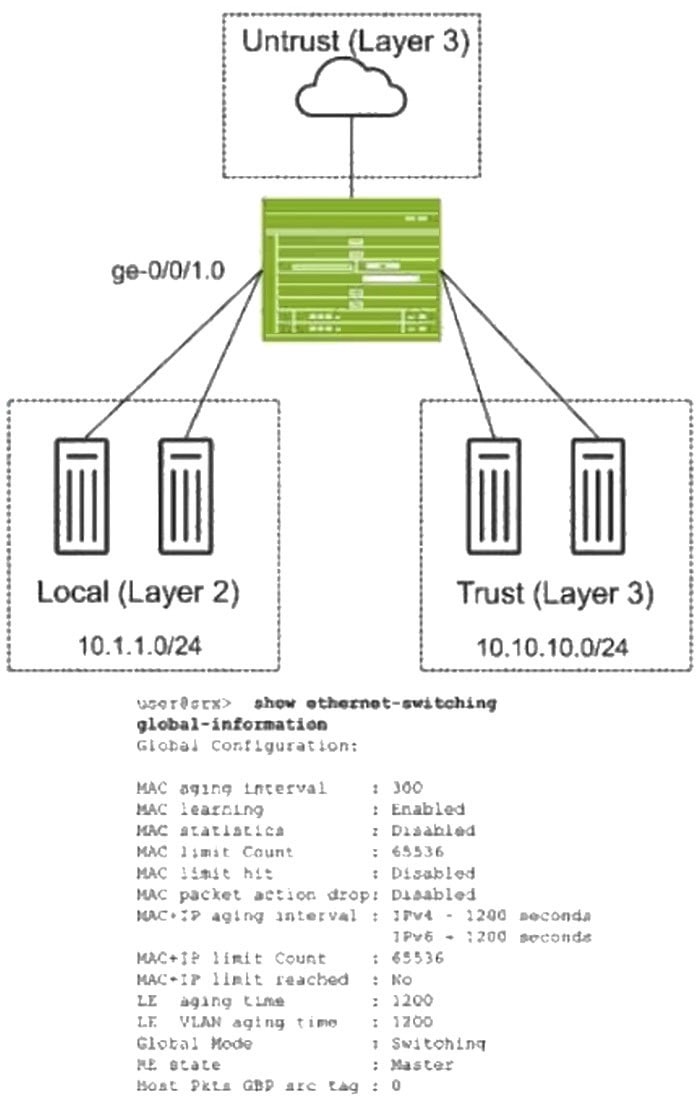

The Local zone represents a Layer 2 segment, which allows for traffic flows within the same zone and across other zones with proper security policies. Additionally, hosts in different zones (such as Local and Trust) can communicate when

policies are defined to allow such interactions. Refer to Juniper Security Policy Documentation for detailed guidance.

From the exhibit:

IRB Interface Requirement (Answer B): To allow communication between the Trust and Untrust zones (Layer 2 and Layer 3 environments), an IRB (Integrated Routing and Bridging) interface is required. The IRB interface acts as a gateway

between Layer 2 and Layer 3 domains.

Command Example:

bash

Copy code

set interfaces irb unit 0 family inet address 10.1.1.1/24

set security zones security-zone untrust interfaces irb.0

Communication Between Local and Trust (Answer D): Hosts in the Local zone (Layer 2) can communicate with hosts in the Trust zone (Layer 3) if appropriate security policies are in place. A security policy is needed to define how traffic can

flow between these zones.

Command Example:

bash

Copy code

set security policies from-zone local to-zone trust policy allow-local-trust match source-address any destination-address any application any set security policies from-zone local to-zone trust policy allow-local-trust then permit

These configurations ensure proper communication between zones in a mixed Layer 2 and Layer 3environment.

Correct Answer: BD

The NAT setup allows only specific external hosts to reach the internal network post-initial session, providing controlled access. Reflexive NAT preserves the source port from the original request, maintaining continuity. More on this can be

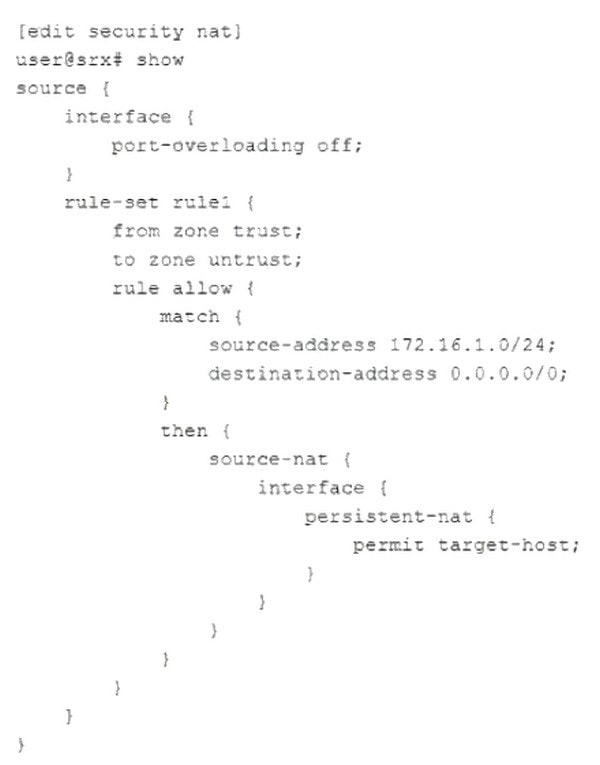

found in Juniper NAT Configuration Documentation. Looking at the NAT configuration, we observe the use of persistent NAT with the keyword permit target-host . Here's a detailed breakdown:

Persistent NAT (Correct: Option B):When persistent NAT is configured with the permit target-host option, it allows the internal host (from the 172.16.1.0/24 network) to initiate communication with an external host. After the initial session is

established, only the specific external host (target host) is allowed to initiate subsequent sessions to the internal host using the reflexive address. This ensures that random external hosts cannot initiate sessions, which enhances security.

Original Destination Port Reuse (Correct: Option D):In this configuration, theinterface-based source NAT uses the original destination port of the incoming session as the source port for the outbound session. This maintains port transparency

for NATed traffic, which can be crucial for certain types of applications that depend on consistent port numbers.

Incorrect Options:

Option Ais incorrect because persistent NAT with target-host does not allow both internal and external hosts to initiate sessions freely. Only the specific external hostcan initiate a session after the initial session is established by the internal

host.

Option Cis incorrect because only the specific external host can initiate subsequent sessions, not any random external host.

Juniper References:

Juniper NAT Documentation: Describes the behavior of persistent NAT and how target-host restrictions work for enhanced security.

Correct Answer: B

To ensure compatibility with third-party devices, next-hop tunnel binding must be manually configured, as dynamic protocols may not be universally supported. This ensures proper routing and secure connections. See Juniper IPsec VPN

Configuration Guide.

In a hub-and-spoke IPsec VPN configuration where an SRX device serves as the hub and the spokes are third- party devices, special considerations must be taken into account due to the variability in VPN implementations across different

vendors.

Next-Hop Tunnel Binding (Correct: Option B):With third-party devices as spokes, dynamic routing protocols (like NHRP) may not be supported for dynamically learning spoke routes. In such cases, the next-hop tunnel binding table must be

statically configured for each spoke on the SRX hub to ensure proper routing and VPN communication. This ensures that traffic between the spokes is routed correctly through the hub.

Incorrect Options:

Option Ais incorrect because aggressive mode is typically less secure and not recommended for hub-and-spoke topologies, especially with third-party devices. Option Cis incorrect because a route-based VPN is usually preferred when

peering with third- party devices for flexibility and scalability. Option Dis incorrect because using loopback addresses is not a requirement when peering with third-party devices. It is a common practice in certain designs, but it is not

mandatory.

Juniper References:

Juniper IPsec VPN Configuration Guide: Provides insights on hub-and-spoke VPN configurations, including next-hop tunnel binding and considerations when working with third-party devices.

Correct Answer: AB

The interfaces are active and respond to ARP for virtual IP as long as the node is the primary or active node in the SRG group. This ensures high availability and proper traffic forwarding. For information, refer to Juniper SRX HA

Documentation.

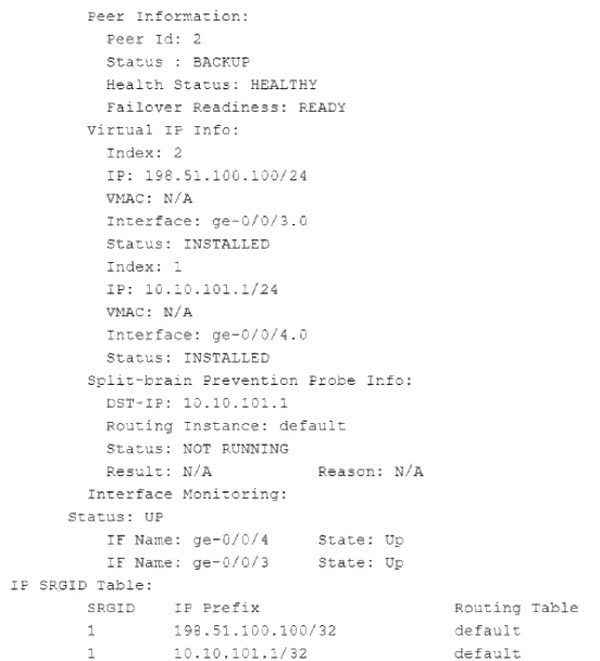

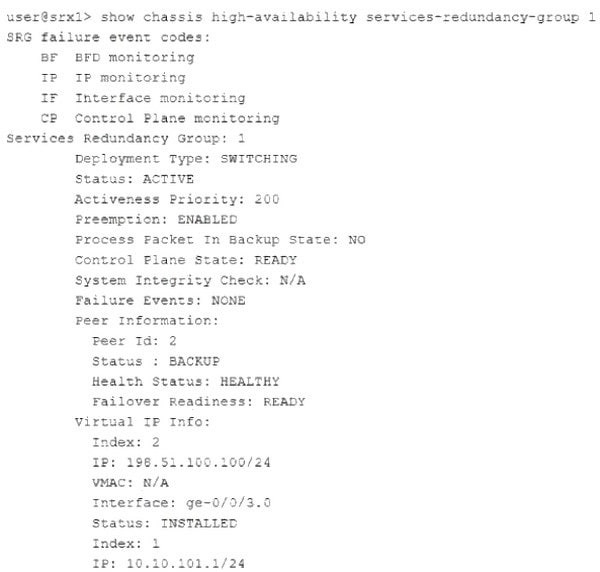

The exhibit shows information about a chassis cluster and its services redundancy group (SRG1) . Let's analyze the relevant details:

of Answer B (Backup Node for SRG1):

The exhibit indicates that this SRX device is in the backup role for SRG1. The status: BACKUP field confirms that this device is currently in a standby role and is not the active node for the services redundancy group.

of Answer A (Interfaces Not Active):

Since the device is in the backup role, the interfaces ge-0/0/3.0 and ge-0/0/4.0 will not respond to ARP requests for the virtual IP's MAC address. Only the active node's interfaces respond to ARP requests in a chassis cluster configuration.

Juniper Security Reference:

Chassis Cluster Redundancy Overview: In a chassis cluster, the backup node does not respond to ARP requests for the virtual IP. Only the active node handles such requests to ensure seamless traffic forwarding. Reference: Juniper Chassis

Cluster Documentation.

Correct Answer: D

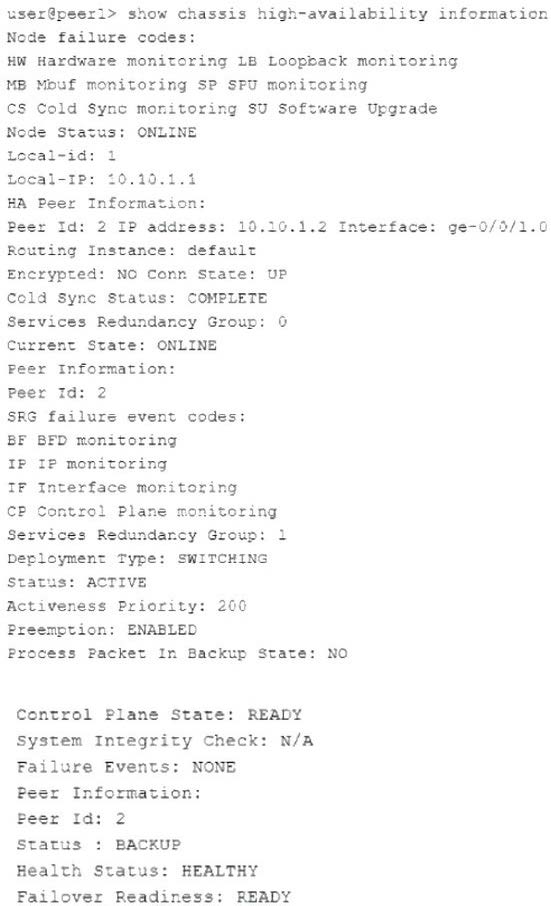

The exhibit describes a Chassis Cluster configuration with high availability (HA) settings. The key information is related to Service Redundancy Group 1 (SRG1) and its failover behavior between the two peers.

of Answer D (Packet Forwarding after Failover):

In a typical SRX HA setup with active/backup configuration , if the SRG1 group moves to peer 2 (the backup), peer 1 (previously the active node) will forward packets to peer 2 instead of dropping them. This ensures smooth failover and

seamless continuation of services without packet loss.

This behavior is part of the active/backup failover process in SRX chassis clusters, where the standby peer takes over traffic processing without disruption.

Juniper Security Reference:

Chassis Cluster Failover Behavior: When a service redundancy group fails over to the backup peer, the previously active peer forwards traffic to the new active node. Reference: Juniper Chassis Cluster Documentation.

Correct Answer: AC

In an active/active HA environment, the Interchassis Link (ICL) is used primarily for Layer 2 communication between nodes. Encrypting the ICL traffic can enhance security as it carries critical HA state synchronization data. More details can

be found in the Juniper HA Documentation. In an active/active mode multinode HA (High Availability) setup, the Inter-Chassis Link (ICL) plays a crucial role in connecting SRX Series devices to ensure synchronized operation. Here are the

key details:

Layer 2 Interface (Answer A): The ICL operates as a Layer 2 interface, facilitating direct communication between the SRX devices in the HA cluster. This interface is essential for synchronizing session information, firewall states, and

configuration data across the devices.

ICL Traffic Encryption (Answer C): For security purposes, the traffic that passes through the ICL can be encrypted. This is particularly important in environments where the ICL traverses insecure or untrusted networks, ensuring that

synchronization data, including session states and configurations, is protected from interception.

To configure encryption on ICL, use Junos OS commands to establish secure communication channels and IPsec tunnels if necessary, depending on the network design.

Correct Answer: D

Intrusion Detection and Prevention (IDP) services require synchronization between nodes in a multinode HA setup to maintain consistent attack detection and prevention across the network. This ensures seamless failover and accurate threat

mitigation. For more information, see Juniper IDP HA Configuration Guide.

In a multinode HA environment, IDP (Intrusion Detection and Prevention) services must be synchronized between nodes to ensure that the same threat detection and prevention rules are consistently applied across both nodes in the HA

cluster. When IDP is used, the state and configuration of IDP signatures and actions need to be synchronized to ensure that failover or switchover between nodes does not cause discrepancies in security policies and inspection. IDP

Synchronization: The synchronization ensures that both nodes are consistently analyzing traffic for threats and applying the same intrusion prevention mechanisms. If this service is not synchronized, the secondary node might fail to detect

threats after a failover.

Juniper References:

Juniper IDP Synchronization: Explains the importance of synchronizing IDP services across HA nodes to maintain consistent security posture across both devices.

Correct Answer: B

Using separate st0 logical units for each spoke connection in a hub-and-spoke VPN topology is advantageous for scalability. Here's why:

Facilitates Scalability (Correct: Option B):By using separate st0 logical units for each spoke, you can easily scale the number of spokes without disrupting the overall configuration. Each spoke gets its own dedicated logical unit, making it

easier to manage individual VPN tunnels as the network grows. This approach provides clear separation of traffic, simplifying troubleshooting and configuration management, especially in large hub-and-spoke networks.

Incorrect Options:

Option A: While separate logical units make configuration management easier, scalability is the primary advantage.

Option C: NHTB (Next-Hop Tunnel Binding) data exchange does not inherently depend on the use of separate logical units.

Option D: While you can assign different settings to each logical unit, the main advantage remains scalability, especially when managing numerous VPN connections.

Juniper References:

Juniper IPsec VPN Documentation: Describes how using separate logical units facilitates scalability and is a best practice for large-scale hub-and-spoke VPN deployments.

Correct Answer: C

DNS doctoring modifies DNS responses for hosts behind NAT devices, allowing them to receive the correct public IP address for internal resources when queried from the public network. This prevents issues where private IPs are returned

and are not reachable externally. For details, visit Juniper DNS Doctoring Documentation.

In this scenario, Host A is trying to resolve the domain name web.acme.com , but the DNS resolution returns the private IP address of the web server instead of its public IP. This is a common issue in networks where private addresses are

used internally, but public addresses are required for external clients.

of Answer C (DNS Doctoring):

DNS doctoringis a feature that modifies DNS replies as they pass through the SRX device. In this case, DNS doctoring can be used to replace the private IP address returned in the DNS response with the correct public IP address for Host A.

This allows external clients to reach internal resources without being aware of their private IP addresses.

Configuration Example:

bash

Copy code

set security nat dns-doctoring from-zone untrust to-zone trust

Juniper Security Reference:

DNS Doctoring Overview: DNS doctoring is used to modify DNS responses so that external clients can access internal resources using public IP addresses. Reference: Juniper DNS Doctoring Documentation.
