OMG-OCSMP-MBA400 Online Practice Questions and Answers

Correct Answer: A

The most significant deficiency impeding widespread use of SysML (without MARTE) in the real-time and embedded domain is a quantifiable notion of time and resources. SysML does not provide a standard way to model time-related properties or constraints, such as deadlines, periods, durations, clocks, etc., nor does it provide a standard way to model resource-related properties or constraints, such as memory, CPU, power, etc. These aspects are essential for real-time and embedded systems design and analysis. MARTE addresses this deficiency by providing concepts and annotations for modeling time and resources in a precise and quantitative way. References: https://www.omg.org/ocsmp/ocsmp-adv-exam.htm https://www.omg.org/spec/MARTE/1.2/About-MARTE/

Correct Answer: A

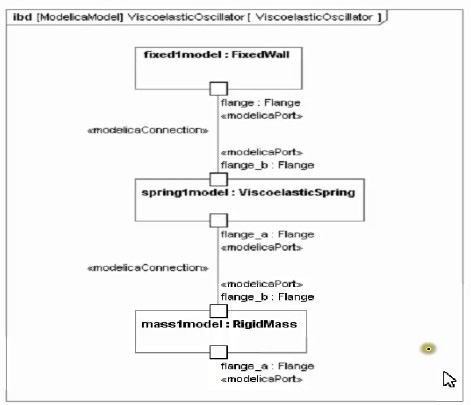

To get this model ready for solving according to the SysML-Modelica Transformation specification, one must provide specific values for the parameters and properties of the blocks, such as resistance, capacitance, voltage, etc. Also, one must define a parametric diagram that includes equations for Kirchhoff's Laws consistent with the above ibd. A parametric diagram is a SysML diagram that shows constraints and parameters on blocks and their properties. Kirchhoff's Laws are physical laws that describe how electric currents and voltages behave in a circuit. By defining a parametric diagram with these equations, one can specify how the blocks and connectors in the ibd are related mathematically.

Correct Answer: A

The best practice to model a software application in a SysML model for a system is to use a block stereotyped with 玸oftware?to represent the software application and its interfaces. A block is a modular unit that encapsulates its structure and behavior and can be connected to other blocks via ports and connectors. A stereotype is an extension of an existing metaclass that adds additional information or semantics to a model element. By using a block stereotypedwith 玸oftware? the software application can be modeled as a system component with its own properties, operations, ports, flows, etc., and can be allocated to hardware blocks or other software blocks.

Correct Answer: C

A profile is a mechanism for extending the UML or SysML metamodel with domain-specific concepts. A profile defines stereotypes, which are extensions of existing metaclasses. A metaclass is a modeling construct that defines the properties and behavior of a set of model elements. For example, the metaclass Class defines the properties and behavior of all classes in a model. When a profile is applied to a model, the stereotypes defined in the profile may beapplied to elements sharing compatible metaclasses. For example, if a profile defines a stereotype <> as an extension of the metaclass Class, then the stereotype <> may be applied to any class in the model. References: https://www.omg.org/ ocsmp/ocsmp-adv-exam.htm https://www.omg.org/spec/UML/About-UML/https://www.omg.org/spec/SysML/About- SysML/

Correct Answer: D

To reuse the type definitions of the properties of a stereotype, the profile needs to import the package where these types are defined. An import relationship indicates that the elements in one package can be referenced by another package without a qualified name. By importing the package with the types, the profile can use them as attributes of the stereotype without having to redefine them.

Correct Answer: C

Any model element that can be contained in a package can be included in a model library. A model library is a package with the stereotype <> applied to it. It contains reusable model elements that can be imported into other models by using an 玦mport?relationship. Any kind of model element that can be owned by or nested within a package can be part of a model library, such as blocks, constraints, values, units, etc.

Correct Answer: C

The element that would be used to depict a model library on a diagram is a package with the stereotype <> applied to it. This stereotype indicates that the package contains reusable model elements that can be imported into other models. Option C shows a package with this stereotype

Correct Answer: E

The information in option E is necessary and sufficient for the engineering team to begin selecting and procuring COTS components for the embedded real-time control system. This information defines the timing and cost requirements and constraints for the system and its components, which are essential for evaluating and comparing the available COTS components. The other options are either incomplete or irrelevant for this purpose. For example, option A does not include the minimum period of time between critical inputs, the maximum number of critical inputs, or the cost information. Option B does not include the minimum period of time between critical inputs or the maximum number of critical inputs. Option C does not include the maximum number of critical inputs or the allocation of cost to system components. Option D does not include the maximum number of critical inputs.

Correct Answer: C

The versions of the various Architectural Frameworks that UPDM 1.0 officially supports are DoDAF 1.5 and 2.0, and MODAF 1.2. UPDM 1.0 provides two sets of profiles: one for DoDAF 1.5 and MODAF 1.2 based on the UPDM 1.1 metamodel, and another for DoDAF 2.0 based on the same metamodel. UPDM 1.0 does not support NAF (NATO Architecture Framework), which is another architectural framework used in the defense domain.

Correct Answer: B

One of the most common reasons to utilize a SysML-Modelica integration is to solve and analyze system dynamics models. Modelica is a language for modeling complex physical systems based on equations and components. SysML is a language for modeling complex systems based on diagrams and textual notations. By integrating SysML and Modelica, system dynamics models can be defined in SysML using parametric diagrams and constraint blocks, and then solved and analyzed using Modelica tools and solvers.
