While preparing for a new cluster installation, your customer indicates that they have some disk shelves and switches that were discontinued at their old site. They want to re-use as much of this equipment as possible. You must verify that their discontinued equipment is compatible with the new equipment they have on order.
Which two actions will accomplish this task? (Choose two.)
A. Use the Hardware Universe portal (HWU).
B. look up the compatibility in the Interoperability Matrix Tool (IMT).
C. Verify compatibility from Activity IQ.
D. Run the Cluster Configuration Builder tool (ConfigBuilder).

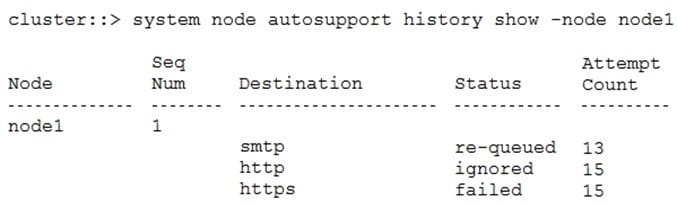

After setting up a new cluster, you run an AutoSupport message for a test.
Which two commands would you use to proof the functionality and settings of AutoSupport? (Choose two.)
A. system node autosupport show
B. system node autosupport history show
C. system node autosupport option show
D. system node autosupport show history
You install and apply the NetApp RSCF on cluster interconnect switches.
Which two statements are correct in this scenario? (Choose two.)
A. The RCF file enables jumbo frames for all cluster traffic.
B. The RCF file enables IPv6 for use by the cluster traffic.
C. The RCF file enables flow control and is set to receive.
D. The RCF file enables CDP to allow connected devices to discover the switch.
To ensure that your customer's cluster is robust and operational, you need to be familiar with configuration
best practices.
Which three practice rules should you always follow? (Choose three.)
A. Keep all nodes in the cluster on the same version of ONTAP.
B. Use LIFs with defined failover policies.
C. Remove failed disk drives once a year to maintain minimum interruption in your controller stability.
D. All power supply units should be plugged into the same power grid.
E. Do not use the root aggregate for storing data.
What is the maximum number of data disks that a RAID-TEC RAID group has?
A. 26
B. 20
C. 29
D. 24
A customer has an AFF A800 with 24 internal drives and is running out of storage capacity. In this scenario, which action will solve this issue?
A. Insert more internal NVMe SSD drives.
B. Attach an additional DS212C shelf, filled with drives.
C. Attach an additional DS460C shelf, filled with drives.
D. Insert more internal SSD drives.
You have set up a new 2-node switchless cluster and want to verify that the failover is configured correctly. In this scenario, which two commands accomplish this task? (Choose two.)
A. cluster ha show
B. storage failover show
C. cluster ring show
D. storage failover show-takeover
Click the Exhibit button.
You have an 8-node cluster, and sometimes the data LIFs fail over to a non-working port.
Referring to the exhibit, what must you do to solve this problem?
A. Configure more than one IPspace.
B. Configure the MTU consistently across the cluster.
C. Configure the correct Ethernet ports in all broadcast domains.
D. Configure the LIFs using separate home nodes.
You are adding two new nodes to an existing switchless 2-node cluster.
In this scenario, which two statements are true? (Choose two.)
A. You must make sure that the existing nodes are healthy and that all cluster links are up.
B. You need to schedule downtime to add these two nodes.
C. The existing cluster must use clustered Data ONTAP 8.1 or later software.
D. You first need to install the cluster interconnect switches to the existing cluster.
You are using a NetApp CN1610 cluster-interconnect switch and need to connect a new AFF A800A node to the switch.
In this scenario, how many Ethernet ports per node are required on each switch?
A. 2
B. 4
C. 6
D. 1
