JN0-692 Online Practice Questions and Answers

Click the Exhibit button.

In the exhibit, on which label value does PE1 expect to receive traffic from CE3 for VPN A?

A. 2002

B. 3001

C. 3002

D. 2001

Click the Exhibit button.

In the exhibit, Area 1 and Area 2 are configured as not-so-stubby areas. RIP network 192.168.100.0/24 is redistributed into OSPF in Area 1.Which three statements are true? (Choose three.)

A. Network 192.168.100.0/24 is advertised in a Type 7 LSA in Area 1.

B. Network 192.168.100.0/24 is advertised in a Type 7 LSA in Area 0.

C. Network 192.168.100.0/24 is advertised in a Type 5 LSA in Area 0.

D. The area border router between Area 0 and Area 2 converts network 192.168.100.0/24 to a Type 7 LSA.

E. Area 2 does not see the network 192.168.100.0/24 in its link-state database.

Click the Exhibit button.

Customer A is complaining that CE1 and CE2 cannot form an OSPF adjacency across your LDP Layer 2 circuit. The physical topology of the network is CE1-PE1-P-PE2-CE2. PE1's loopback is 192.168.5.1, P's loopback is 192.168.6.1, and PE2's loopback is 192.168.7.1.

Referring to the output in the exhibit, what is the problem?

A. mismatched virtual circuit ID values

B. mismatched interface encapsulations

C. incorrect PE-CE interface configuration

D. extended LDP neighbor not established

You just added route reflectors to your network and you find that all of your VPN routes are hidden on the route reflectors. What three solutions can you use to solve this? (Choose three.)

A. Use rib-groups to add IGP routes to inet.3 and/or inet6.3 on all of the client routers.

B. Add MPLS LSPs between the route reflectors and their client routers.

C. Apply a next-hop-self export policy on each of the route reflectors.

D. Use rib-groups to add IGP routes to inet.3 and/or inet6.3 on the route reflectors.

E. Add a static default route to inet.3 and/or inet6.3 on the route reflectors.

Click the Exhibit button.

You are building an interprovider VPN with ISP2 to support end-to-end connectivity for Customer A, as shown in the exhibit. For scalability reasons, the ASBR routers cannot exchange VPN routes for Customer

A. Which two configurations are needed to support this requirement? (Choose two.)

A. family inet-vpn on the ASBRs

B. labeled-unicast on the ASBRs

C. multihop EBGP between the PEs

D. one VRF on the ASBRs for Customer A

Click the Exhibit button.

Referring to the exhibit, which statement is true assuming BGP Layer 2 VPN signaling?

A. PE1 receives two BGP NLRI updates, each containing a remote site ID, a label base, and Layer 2 encapsulation.

B. PE2 receives one BGP NLRI update containing a remote site ID, a label base, and Layer 2 encapsulation.

C. PE2 receives two BGP NLRI updates, each containing a remote site ID, label vc, and Layer 2 encapsulation.

D. PE1 receives one BGP NLRI for VPN A containing only a remote site ID and a label offset value.

Click the Exhibit button.

On your MX Series router, traffic using the less-critical scheduler is out of profile. All other data is currently in profile. Referring to the exhibit, which statement is correct?

A. The less-critical queue can use the remaining bandwidth.

B. The less-critical queue cannot buffer traffic, so traffic is dropped.

C. The less-critical queue is serviced before the critical queue.

D. The less-critical queue cannot use the remaining bandwidth.

Which configuration excerpt will advertise all local IPv4 and IPv6 destinations to the network?

A. Option A

B. Option B

C. Option C

D. Option D

What is the first step of the CSPF algorithm's pruning process?

A. Prune links with insufficient bandwidth.

B. Prune links that contain an excluded administrative group.

C. Prune links that do not contain an included administrative group.

D. Prune links that do not contain an administrative group.

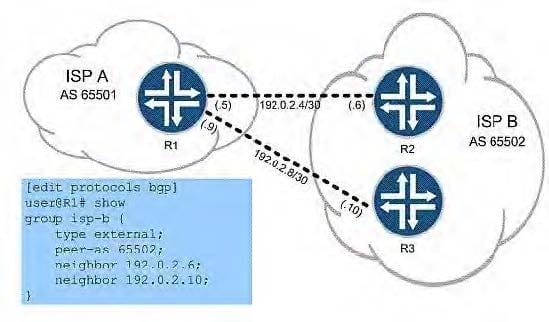

You are trying to establish an EBGP peering with a neighbor that is not in the same subnet.

What configuration parameter, when accompanied with a supporting import policy, can you use to resolve the issue and maintain multipath functionality?

A. multihop

B. accept-remote-nexthop

C. multipath

D. include-mp-next-hop
