JN0-362 Online Practice Questions and Answers

Click the Exhibit button.

Referring to the exhibit, which two statements are true? (Choose two.)

A. The BGP peering between R1 and R4 should use loopback interface addresses

B. The BGP peering between R1 and R4 should use physical interface addresses

C. The BGP peerings between R1, R2, and R3 should use loopback interface addresses

D. The BGP peerings between R1, R2, and R3 should use physical interface addresses

Which two statements are true for GRE tunneling? (Choose two.)

A. GRE tunnel endpoints must have a valid route to the remote endpoint

B. GRE tunnels support multiple logical units per interface

C. GRE tunnels are stateful by default

D. GRE tunnels support only one logical unit per interface

Click the Exhibit button.

You have configured IPv6 over IPv4 tunneling, as shown in the exhibit. However, hosts connected to network 2001:0:0:1::0/64 cannot communicate with hosts on network 2001:0:0:2::0/64. The router R2 has a similar configuration as the R1 router.

How would you solve this problem?

A. Configure an IGP across the tunnel interfaces

B. Configure an IPv6 address on the tunnel interfaces

C. Configure the next hop of the inet6.0 static route to point to the physical interface between the routers

D. Configure the next hop of the inet6.0 static route to point to the IPv4 address of the remote router

You are asked to change the default TTL handling behavior on your Junos device to ensure that the RSVP-signaled LSPs in your MPLS network cannot be mapped.

Which configuration should be performed to accomplish this task?

A. Configure the no-decrement-ttl parameter for each LSP on the ingress device

B. Configure the no-propagate-ttl parameter for each LSP on the egress device

C. Configure the no-propagate-ttl parameter for each LSP on the ingress device

D. Configure the no-decrement-ttl parameter for each LSP on the egress device

Which two functions are performed by the OSPF designated router? (Choose two.)

A. It advertises link-state information to the AS

B. It designates some routers as inactive when not needed

C. It forms adjacencies with all the other OSPF routers on the link

D. It chooses the backup designated router

Which two statements are true when considering logical systems? (Choose two.)

A. Logical systems do not support nonstop active routing

B. Logical systems share the master routing table and can create routing instances

C. Logical tunnels cannot be used to connect logical systems

D. Logical systems provide management separation by providing user access per logical system

Which RSVP object allows LSRs to influence path selection?

A. record route object

B. explicit route object

C. hop object

D. session object

Click the Exhibit button.

Referring to the exhibit, which statement is correct?

A. R2 will be the designated router

B. R3 will not participate in the election process

C. R1 will not participate in the election process

D. R4 will be the designated router

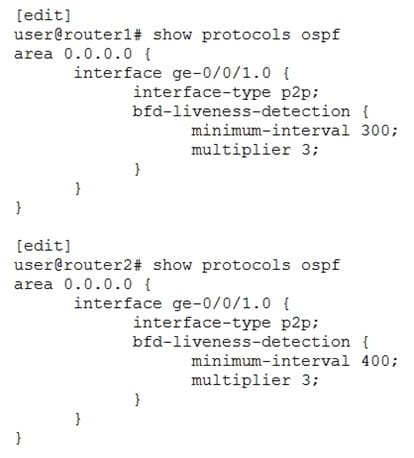

Click the Exhibit button.

Referring to the exhibit, if there is a connection failure between router1 and router2, how much time will pass before the devices declare the BFD session dead?

A. 1200 ms

B. 300 ms

C. 600 ms

D. 900 ms

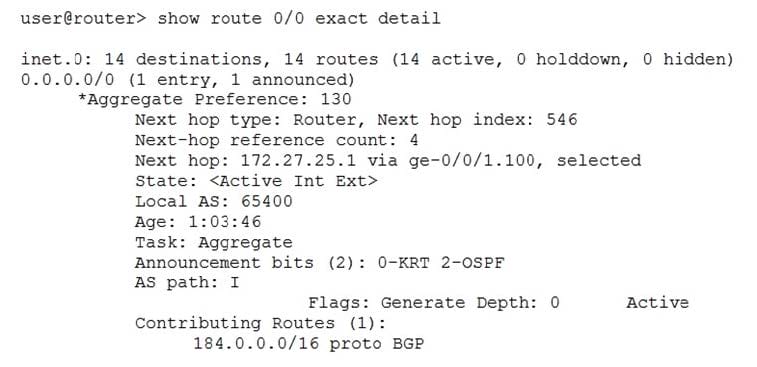

Click the Exhibit button.

Which type of route is shown in the exhibit?

A. generate

B. static

C. kernel

D. aggregate
