JN0-104 Online Practice Questions and Answers

You must verify that interface ge-0/0/0.0 is administratively up and that the link is up.

In this scenario, which command will accomplish this task?

A. show configuration interfaces ge-0/0/0.0

B. show chassis fpc pic-status

C. show system information

D. show interfaces terse

What information is provided by the show route forwarding-table command?

A. the routing table stored on the RE

B. the protocol from where the route was learned

C. the outgoing interface(s) associated with the destination prefixes

D. the number of routes that are active, hidden, or in a hold-down state

A user entered configuration mode and modified the candidate configuration.

In this scenario, what are two results? (Choose two.)

A. Other users cannot enter configuration mode.

B. Other users cannot enter configuration mode using the exclusive parameter

C. Other users cannot log into the device.

D. Other users cannot enter configuration mode using the private parameter.

Which two statements describe IPv4 default behavior for BGP? Choose Two

A. All Active BGP routes are exported to configured EBGP neighbors

B. All BGP routes are exported to configured EBGP neighbors

C. All BGP routes are imported into the inet.0 routing table

D. All BGP routes are imported into the inet4.0 routing table

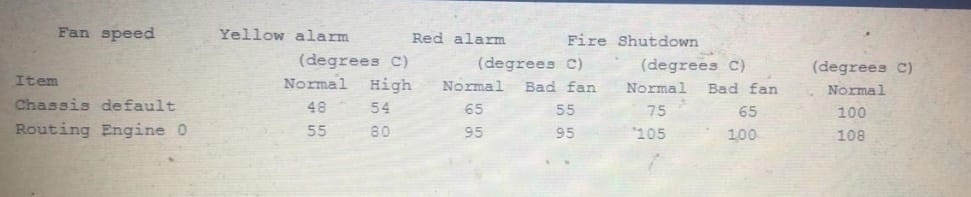

Which command displays the output shown in the exhibit?

A. show chassis temperature-thresholds

B. show chassis environment

C. show chassis hardware

D. show chassis alarms

Your configuration contains the static routes shown in the exhibit. Which command will successfully remove the 166.74.67.131 static route?

A. delete routing-options static route 166.74.67.131/32 qualified-next-hop 166.113.123.37 interface irb.222

B. delete routing-options static route 166.74.67.131/32

C. delete routing-options static route 166.74.67.131/32 qualified-next-hop 166.113.123.37

D. delete routing-options static route 166.74.67.131/32 qualified-next-hop

You are troubleshooting an issue and want to monitor syslog in real time. Which operational command accomplish this task?

A. Show log message

B. Monitor start message

C. Show log message | refresh i

D. Monitor traffic interface fxp0.0

Given the following configuration, set system authentication-order [ tacplus ]

Which two statements are correct? (Choose two.)

A. If the TACACS+ server is available and rejects the username/password provided, the user is not allowed to access the device.

B. If the TACACS+ server is available and rejects the username/password provided, the local password database is checked.

C. If the TACACS+ server is not available, the user is not allowed to access the device.

D. If the TACACS+ server is not available, the local user database is checked.

Referring to the exhibit, which command will change the 172.16.10.1/24 IP address to 172.16.100.1/24 IP address?

A. copy interfaces ge-0/0/2 unit 0 family inet address 172.16.10.1/24 to address 172.16.100.1/24

B. set interfaces ge-0/0/2 unit 0 family inet address 172.16.100.1/24

C. rename interfaces ge-0/0/2 unit 0 family inet address 172.16.10.1/24 to address 172.16.100.1/24

D. insert interface ge-0/0/2 unit 0 family inet address 172.16.10.1/24 before address 172.16.100.1/24

Which two statements describe the functions of the Routing Engine (RE)? (Choose two.)

A. The RE will apply filters and routing policies when forwarding the packets to their final destination.

B. The RE will calculate the best network path to each individual subnet based on input from various routing protocols and static routes.

C. The RE will route or switch packets or frames out of the correct interface as quickly as possible.

D. The RE will process management traffic to help monitor and manage the network device.
