HPE6-A71 Online Practice Questions and Answers

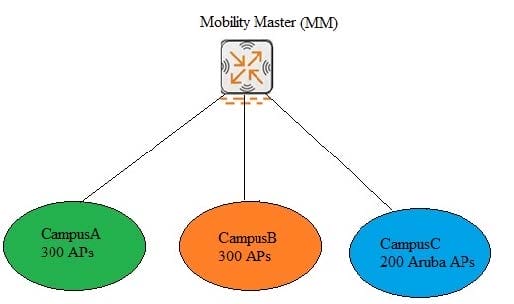

Refer to the exhibit.

An administrator implements AP licensing on a Mobility Master (MM).

Network engineers at CampusA want to deploy an additional 100 APs. Currently all of the AP licenses in

CampusA and CampusB are allocated, but only 200 of the AP licenses in CampusC are allocated.

Each campus is responsible to purchase its own AP licenses. There are 900 AP licenses deployed in the

global pool.

There are three dedicated pools.

From the global pool, 300 AP licenses are assigned to each dedicated pool.

What can the administrator do to add capacity for CampusA in alignment with campus policies?

A. Allow CampusA to share from the CampusC pool.

B. Add 100 more AP licenses and assign them to the CampusA pool.

C. Move 100 licenses from the CampusC pool to the global pool.

D. Add 100 more AP licenses to the global pool.

Refer to the exhibit.

An administrator wants to verify the operation of MultiZone in a network. The administrator uses the

command show ap debug multizone to generate the output shown in the exhibit.

Based on the output, which statement is true?

A. Zone 1 is the primary zone, and zone 0 is the data zone.

B. The primary zone has limited the data zone to one WLAN.

C. The maximum VAPs in the MultiZone is 15.

D. The MultiZone APs are in a cluster.

Which VPN component must be configured on the Mobility Master (MM) to allow a RAP to use the built-in certificate to successfully connect to a Mobility Controller (MC)?

A. IP Address pool

B. VPN username and password

C. IPSec pre-shared key

D. CPSec auto-whitelist

Which Aruba Mobility Controller (MC) administrative role should an administrator assign to a receptionist so that they can create and manage guest accounts?

A. guest-provisioning

B. receptionist

C. guest-operator

D. network-operations

An administrator wants to implement the MultiZone feature in a company's network to segregate corporate and guest traffic. Corporate traffic will have APs establish connections to a cluster managed by a Mobility Master (MM), and guest traffic will have the same APs establish connections to a standalone controller at the company's DMZ.

What is true about the implementation of MultiZones in this scenario?

A. The MultiZone feature must be enabled in the data zone.

B. The primary zone maintains full control of AP management and configuration.

C. The primary and data zones must be in the same L2 subnet.

D. A MultiZone AP can initially connect to any zone to obtain its configuration.

Refer to the exhibit.

An administrator wants to centralize administrative access to the Aruba Mobility Controllers (MC) and Mobility Master (MM). ClearPass is set up and the preferred authentication protocols is TACACS+. Where should the administrator perform this configuration in the MM hierarchy shown in the exhibit?

A. At the Managed Network level

B. At the two campus levels

C. At both the Mobility Master and Managed Network levels

D. At the controller levels

Where would an administrator define the split-tunneling mode for a RAP located at a branch office?

A. the Firewall policy on the RAP

B. the AAA policy on the controller

C. the Firewall policy on the controller

D. the VAP profile on the controller

An administrator deploys a RAP at a branch office. The RAP should send all employee corporate traffic to the Mobility Controller (MC) and Internet traffic should stay local.

Which forwarding mode should the administrator configure for the employee WLAN to allow for this forwarding?

A. Tunnel

B. Decrypt-tunnel

C. Bridge

D. Split-tunnel

An administrator implements per-user tunneled node that involves ArubaOS-Switches and Aruba Mobility Controllers (MCs). What always happens when a wired client connects to the network?

A. All switch traffic is tunneled to the controller.

B. The switch performs user authentication.

C. The tunnel fails unless VMCs are used.

D. Wired users map to an AAA profile on the controller.

An administrator has multiple AAA servers, some Microsoft RADIUS and some ClearPass. When 802.1X users authenticate, the administrator wants to ensure that the authentication requests are handled by the appropriate AAA server. Users enter their username in this format: username@domain_name.

What must the administrator implement to ensure the correct AAA server processes the authentication request?

A. server matching rules for the VAP profile

B. server matching rules for the server group

C. server matching rules for the AAA profile

D. server matching rules for the 802.1X profile
