HPE2-T36 Online Practice Questions and Answers

DRAG DROP

Select and Place:

Where can an administrator select the firmware baseline for a specific Synergy compute node?

A. Logical Interconnect Group

B. Server Profile

C. Image Streamer

D. Intelligent Provisioning

A customer has HPE OneView 1.2 and wants to upgrade to 4.0. What is the correct procedure?

A. import all virtual connect manager environments and then upgrade directly to 4.0

B. upgrade directly to 4.0

C. upgrade to 3.1, import all virtual connect manager environments, then upgrade to 4.0

D. upgrade to 3.1 and then upgrade to 4.0

A customer creates a server profile template with two new volumes. The first is an 8 GB LUN for the boot drive. The second is a 500 GB LUN for the ESXi cluster shared storage. After the server profiles are assigned to the servers they each have an 8 GB drive and a 500 GB drive but the 500 GB drive isn't shared across the member nodes within the cluster. What is the most likely problem with the Server Profile Template?

A. Mapping multiple LUNs aren't supported with HPE OneView Server Profile Templates.

B. Both volumes were created as Private.

C. The incorrect logical disk type was selected.

D. ESXi can't share drives created dynamically via HPE OneView.

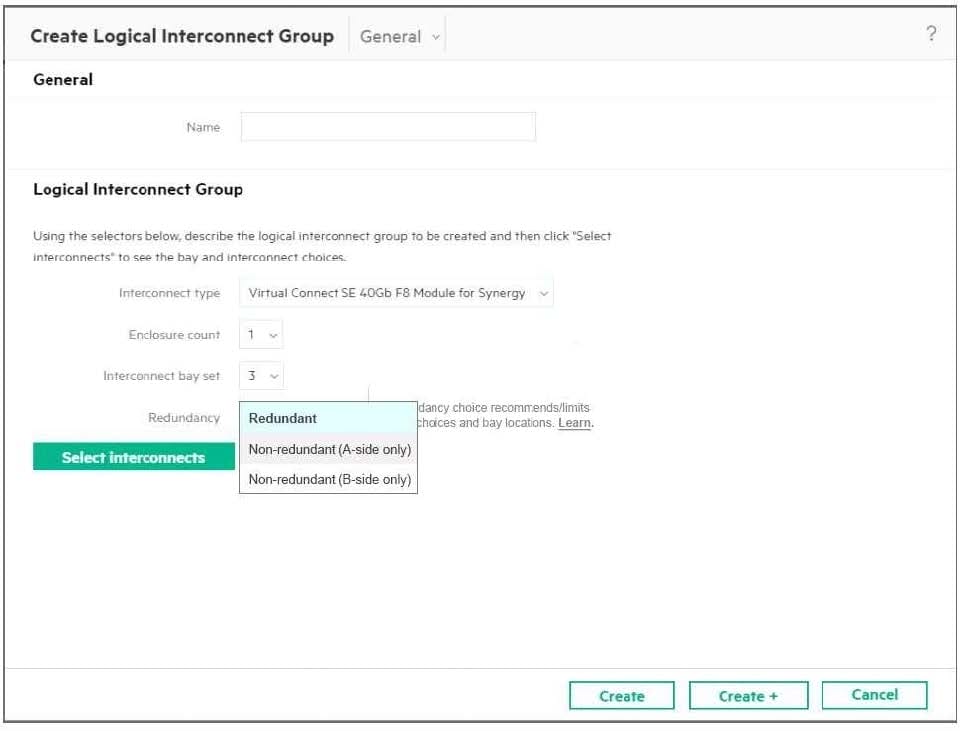

Refer to the exhibit.

A solution architect is setting up a Synergy configuration for a customer. The customer wants their redundancy level to be Highly Available. What is preventing this option from being available for the customer?

A. Synergy doesn't support an HA fabric configuration on the Virtual Connect SE 40GB F8 module for Synergy.

B. HA is not supported in Interconnect Bay set 3.

C. HA requires multiple frames in the fabric domain.

D. HA is only supported in mixed speed environments.

A systems administrator needs to add a VLAN to a network set to support a new application. They have added the network to the upstream switch and the Logical Interconnect Group in HPE OneView but traffic is not passing. What is the most likely cause of the problem?

A. Intelligent Management Center (IMG) has not been updated via REST.

B. The administrator failed to update the state change message bus.

C. The administrator needs to update the Logical Interconnects from the Logical Interconnect Group.

D. The upstream switch doesn't have the VLAN enabled.

Which HPE tool can be integrated with HPE OneView to provision ToR switch ports automatically for newly added BladeSystem enclosures?

A. StoreServ Management Console

B. Synergy Composer

C. Onboard Administrator

D. Global Dashboard

E. Intelligent Management Console

Which objects can be placed into the rack layout In HPE OneView? (Select two.)

A. Image Streamer

B. Composer

C. Power Delivery Device

D. Frame Link Module

E. Server

A customer is trying to upload an additional SPP to the OneView appliance. But receives an error message staging that there is not enough internal space available. What can the customer on the appliance to enable the upload?

A. Present an additional disk drive

B. Attach an external USB drive

C. Enable compression for SPPs

D. Add a web server an external repository

A Customer is concerned about the security of the simple network management protocol (SNMP). What should you recommend to resolve the customers concern? Select 2

A. Use Encryption in SNMPv1

B. Use Secure Socket layer SSL in SNMPv3

C. Use encryption in SNMPv3

D. Use authentication in SNMPv3

E. Use transport layer security in SNMPv1
