HPE0-V14 Online Practice Questions and Answers

DRAG DROP

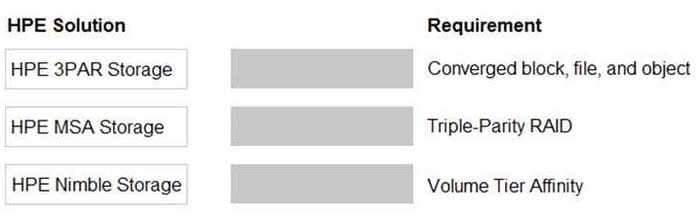

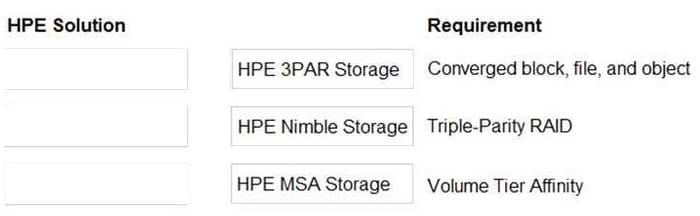

Match the customer requirement to the appropriate HPE storage solution.

Select and Place:

A customer needs to integrate a new digital video surveillance solution into their existing environment and available network ports. The solution needs to include redundant hypervisor servers and a redundant SAN with a shared Fibre Channel attached storage array.

You plan to propose the following configuration:

2 HPE DL380 Gen10 servers with dual processors, 384 GB of memory, dual port 10 Gb NIC, and High Performance Fan Kit 1 HPE MSA 2050 Dual Controller Storage Array with 24x 1.8 TB 10 K SAS drives and 96x 7.2K NL drives 4 VMware vSphere Standard licenses 1 VMware vCenter Server Foundation licenses 5 year 24x7x4 support for all equipment

What must be added to the configuration to provide a complete solution? (Choose two.)

A. 2 HPE 10/25 Gb 2-port 622FLR-SFP28 CNA

B. 2 HPE FlexFabric 5710 switches

C. 2 Aruba 8320 switches

D. 2 HPE SN3000B switches

E. 2 HPE StoreFabric SN1200E 16 Gb Dual Port FC HBAs

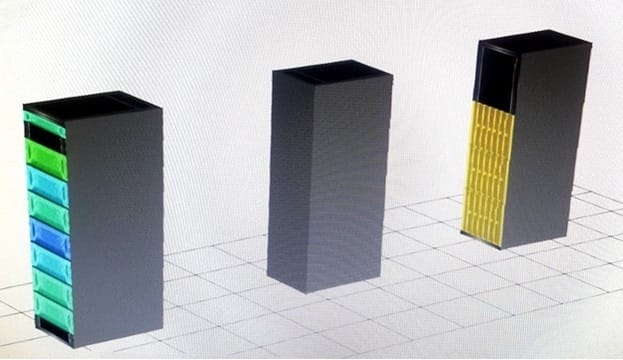

Refer to the exhibit.

You observed some high temperature alerts on a switch shown in the middle rack of the exhibit. The cooling in the data center is following best practices for the layout in the exhibit. The switch is an HPE 5945 series switch, and all the fans are operating normally. The switch is racked so that its ports face the rear of the rack. The administrator noticed the fan modules have red handles.

What should the administrator do to resolve the issue?

A. Replace the fan modules with port-to-power fan modules.

B. Add additional fan modules to the switch.

C. Replace the fan modules with power-to-port fan modules.

D. Change the fan direction with the fan preferred direction command.

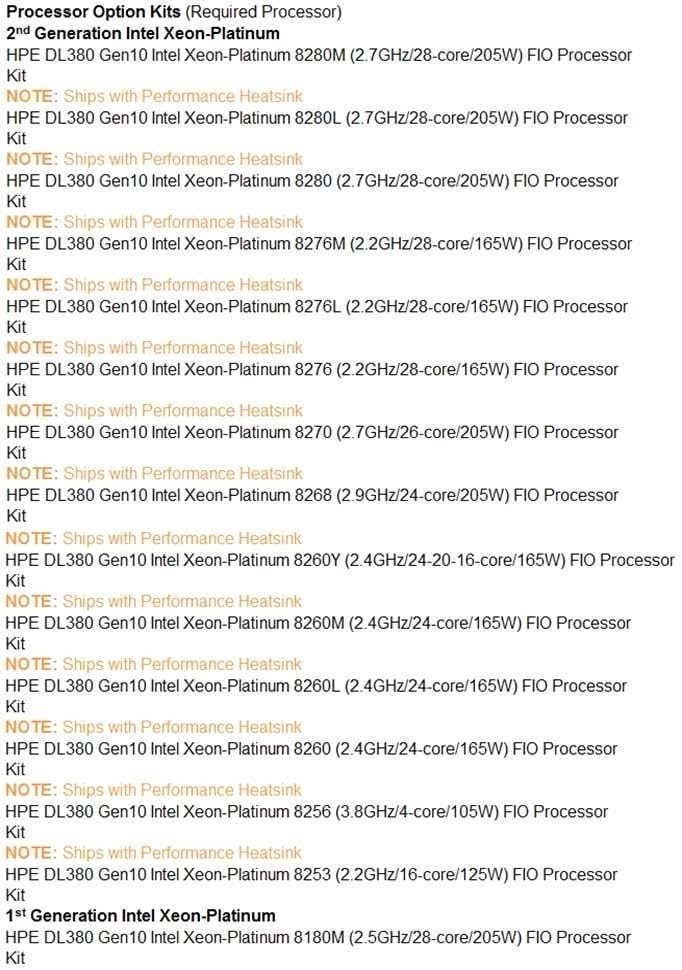

Refer to the exhibit.

A customer has two HPE ProLiant DL380 Gen10 servers running as an Oracle cluster. They are trying to reduce licensing costs and want to move to the best processor available from the list to minimize licensing costs while still providing a high level of performance for the Oracle database.

Which DL380 Gen10 processor would you recommend?

A. Intel Xeon-Platinum 8280M

B. Intel Xeon-Platinum 8280

C. Intel Xeon-Platinum 8256

D. Intel Xeon-Platinum 8253

You need to install 10 HPE ProLiant servers in an environment without DHCP. Which tool can you use to set up remote management?

A. Intelligent Provisioning

B. UEFI System Utilities

C. Intelligent Management Center

D. iLO 5 Configuration Utility

A customer needs to update firmware and perform diagnostic tests on various components of a HPE ProLiant server.

Which utility should they use?

A. Insight Online

B. Intelligent Provisioning

C. Intelligent Management Center

D. UEFI

You are creating an internal array on an HPE ProLiant server. What can you do to maximize the storage space efficiency?

A. Populate drive bays with the smallest-capacity drive first.

B. Install drives that have the same capacity.

C. Match the device numbers for the drives with their bay numbers.

D. Populate drive bays with the largest-capacity drive first.

Why is RAID 6 the best option for a large RAID set for archive storage on large-capacity drives?

A. to reduce risk during volume rebuild

B. to increase write performance on the volume

C. to maximize capacity of the volume

D. to reduce drive wear

Which tool provides a report on the current usage levels and life span of some installed read-intensive flash drives?

A. Central Management Console

B. Integrated Management Log

C. Intelligent Provisioning

D. Smart Storage Administrator

A company plans to purchase new HPE servers. The company needs to maximize local storage capacity within the servers.

Which HPE servers should the company install?

A. ProLiant BL460c Gen10

B. ProLiant DL380 Gen10

C. ProLiant ML110 Gen 9

D. ProLiant DL360 Gen 9
