HP2-Z37 Online Practice Questions and Answers

An HP Provision switch has port A1 connected to port g1/0/1 of an HP Comware switch. The ProVision port has the following configuration: vlan 1 untag A1 vlan 10 tag A1 vlan 20 tag A1

Which Comware configuration will allow the three VLANs to successfully pass traffic between the two switches?

A. interface g1/0/1port link-type trunkport trunk permit vlan 1 10 20

B. interface g1/0/1 port trunk encapsulation dot1qport trunk native vlan 1port trunk permit vlan 1 10 20

C. interface g1/0/1 port trunkport trunkpermit auto-vlan

D. interface g1/0/1 port trunkport trunkpermit auto-vlan

A network administrator establishes an aggregated link between an HP Comware and ProVision switch. VLAN 1 is untagged and VLANs 2 and 3 are tagged. The administrator configures these commands on the Comware switch:

The administrator configures theses commands on the ProVision switch:

Some of the links in the aggregated link become blocked.

Which Comware configuration should the administrator apply to the Comware switch to resolve this issue?

A. interface bridge-aggregation 1link-aggregation mode dynamic

B. interface bridge-aggregation 1link-aggregation type lacp dynamic

C. interface bridge-aggregation 1link-aggregation mode static

D. interface bridge-aggregation 1link-mode type lacp

What does the traceroute command identify on an HP ProVision switch?

A. each Layer 3 device between the switch and a destination

B. the path to each router connected to the switch

C. debug output tracing entries to the routing table

D. each physical device between the switch and a destination

Refer to the exhibit.

The topology shown on the left of the exhibit illustrates a traditional three-tier architecture. Which technology allows a company to simplify their network with a two-tier topology as illustrated on the right of the exhibit.

A. Intelligent Resilient Framework

B. Software-defined Networking

C. Multiple Spanning Tree Protocol

D. Equal Cost Multi-Pathing

Refer to the exhibit.

The switches in the exhibit are all HP ProVision switches that run Multiple Spanning Tree Protocol (MSTP).

The network administrator wants all of the switch-to-switch links shown in the exhibit to be available for forwarding routed traffic. What should the administrator do to accomplish this?

A. Configure the switch-to-switch ports as MSTP auto-edge ports.

B. Configure link-keepalive on the switch-to-switch ports.

C. Configure BPDU filters on the switch-to-switch ports.

D. Configure links on a switch as a standard link aggregation.

Which HP solution delivers automated virtual machine orchestrator, automatic synchronization of network connectivity information, and visibility to performance of wired and wireless users?

A. Unified Wired-WLAN modules and switches

B. Intelligent Management Center (IMC)

C. Virtual Connect FlexFabric

D. Intelligent Resilient Framework

What is the purpose of a management VLAN on an HP Provision switch?

A. To prevent IP addresses from being configured on any VLANs other than the management VLAN

B. To provide an administrative-only marker, label, or alias for the VLAN where IMC is installed

C. To identify a specific VLAN as the only VLAN from which users can connect to the switch management interface

D. To limit remote access connections by specifying the IP addresses that can establish connections

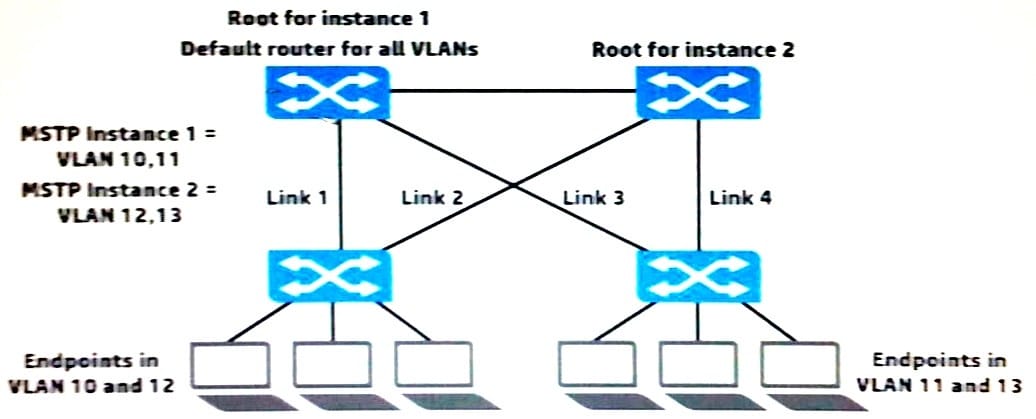

Refer to the exhibit.

The network administrator is setting up Multiple Spanning Tree Protocol (MSTP) with the settings shown in the exhibit. All the switches are in the same region. The administrator has requested help determining which VLANs each switch-toswitch link should carry. What is a recommendation for this topology?

A. To prevent disruptions during link failure, Links 1-4 should carry VLANs 10-13.

B. To optimize forwarding, Links 1 and 2 should only carry VLANs 10 and 12, and Links 3 and 4 should only carry VLANs 11 and 13.

C. To ensure compatibility with MSTP, Links 1-4 should be untagged in VLAN 1 and have no tagged VLAN assignments.

D. To optimize forwarding, Links 1 and 3 should only carry VLANs 10 and 11, and Links 2 and 4 should only carry VLANs 12 and 13.

A mid-sized company purchases HP Intelligent Management (IMC) to manage 500 nodes. In addition to the base platform, the company purchases the UAM, WSM, and NTA modules. Which deployment method should this company use to install their IMC base platform and modules?

A. Stand-alone

B. Distributed

C. Centralized

D. Hierarchical

Which statement is true concerning spanning tree protocols and HP switches?

A. ProVision switches use non-standard default cost values

B. Comware switches have spanning tree enabled, by default

C. ProVision switches, by default, auto-sense edge ports

D. Comware switches use their serial number as the switch identifier in the bridge ID
