HP0-Y52 Online Practice Questions and Answers

Two switches are members in an active Intelligent Resilient Framework (IRF) virtual device. A network administrator joins a third switch to the IRF virtual device. Which switch is now the master?

A. The current master of the IRF virtual device always remains the master.

B. The switch with the lowest member ID always becomes the master.

C. The switch with the lowest priority value always becomes the master.

D. The switch with the highest priority value always becomes the master.

A network administrator configures OSPF in an HP ProVision based network. The administrator is concerned that a rogue device might connect to an access layer switch and introduce OSPF routes to the company's routing topology.

The access VLANs do not contain additional routers.

Which configuration should the administrator apply for these access VLANs to prevent them from forming an adjacency with rogue devices?

A. router ospfno vlan neighbor-adjacency

B. route spfip silent-vlan

C. router ospf passive-vlan

D. vlan ip ospf passive

A company wants to implement HP Intelligent Resilient Framework (IRF) at the access layer. Which switches could they use?

A. two HP 5500 HI Series switches

B. one HP 5412R zl2 Series switch and one HP 5800 Series switch

C. one HP 5800 Series switch and one HP 5500 Series switch

D. two HP 5406R zl2 Series switches

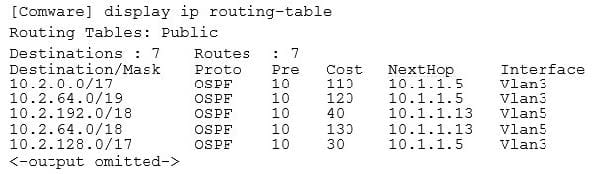

Refer to the exhibits.

Exhibit 1

Exhibit 2

PC1 cannot reach PC2. Based on the exhibits, what could be causing this error?

A. PC1 has the wrong IP address for its default gateway setting.

B. Router A has a direct route, instead of a static route, to 10.1.10.0/24.

C. The next hop address for the 10.1.20.0/24 route is incorrect.

D. Router A has an invalid subnet mask for the VLAN 1 subnet.

Which HP software platform provides centralized network management, monitoring, and configuration of wired and wireless network infrastructure devices, as well as traffic monitoring, user management, and other capabilities?

A. HP IntelligentManagement Center (IMC)

B. HP Intelligent Resilient Framework (IRF)

C. HP Virtual Cloud Networking (VCN)

D. HP Virtual Connect FlexFabric

Refer to the exhibit.

A network administrator has implemented link aggregation on an HP Comware switch using LACP. The two ports are functioning at the data link layer between the Comware switch and its neighboring switch. The administrator executes the display link-aggregation verbose command and notices the flags shown in the exhibit.

What does this indicate?

A. The links are up, but both links are blocked by LACP.

B. The links are up, but are blocked because they are using duplicate operational keys.

C. The links are up, but LACP negotiation has failed on them.

D. The links are up, but LACP is not configured on this link aggregation.

A customer is implementing an access layer solution with four HP Comware switches in an Intelligent Resilient Framework (IRF) virtual device or domain. The customer expects to add two additional switches of the same model and would like to add them to the existing IRF virtual device. What must the customer verify?

A. that the IRF virtual device has spanning tree enabled on it

B. that the new switches are both assigned the same member ID as the master of the existing IRF virtual device

C. that the IRF virtual device is using a daisy chain topology to provide better resilience

D. that the switch model supports at least six switches in an IRF virtual device

Refer to the exhibit.

The network administrator is setting up Multiple Spanning Tree Protocol (MSTP) with the settings shown in the exhibit. All the switches are in the same region. The administrator has requested help determining which VLANs each switch-toswitch link should carry. What is a recommendation for this topology?

A. To prevent disruptions during link failure, Links 1-4 should carry VLANs 10-13.

B. To optimize forwarding, Links 1 and 2 should only carry VLANs 10 and 12, and Links 3 and 4 should only carry VLANs 11 and 13.

C. To ensure compatibility with MSTP, Links 1-4 should be untagged in VLAN 1 and have no tagged VLAN assignments.

D. To optimize forwarding, Links 1 and 3 should only carry VLANs 10 and 11, and Links 2 and 4 should only carry VLANs 12 and 13.

Which settings enable a network administrator to use terminal emulation software to interface with an HP Comware switch's auxiliary port?

A. 9600 bps, 7 data bits, 1 stop bit, no parity, flow control

B. 14,200 bps, 8 data bits, 1 stop bit, parity, flow control

C. 9600 bps, 8 data bits, 1 stop bit, no parity, no flow control

D. 9600 bps, 8 data bits, 1 stop bit, parity, flow control

Refer to the exhibit.

Exhibit: HP Comware switch configuration

Based on the exhibit output, which type of link aggregation is this?

A. dynamic trunk protocol

B. static trunking

C. dynamic port group

D. static LACP
