ACD300 Online Practice Questions and Answers

Correct Answer: A

Adding more engine replicas will increase the number of threads available to execute unattended process activities, such as timer events and sending notification emails. This will reduce the Java Work Queue Size and improve the performance of the application. Verified References: Appian Engine Performance Logs, Appian Engine Configuration

Correct Answer: BD

Functional acceptance criteria are the conditions that a user story must satisfy to be accepted by the user or stakeholder. They should be specific, measurable, achievable, relevant, and testable. In this case, two functional acceptance criteria that would be considered `good' are: The user will receive an email notification when their order is completed. This is a specific, measurable, achievable, relevant, and testable criterion that describes a feature that the user needs to be informed of their order status. The user cannot submit the form without filling out all required fields. This is a specific, measurable, achievable, relevant, and testable criterion that describes afeature that the user needs to provide valid and complete information for their order. The other options are not as good. Option A, the user will click Save, and the order information will be saved in the ORDER table and have audit history, is not a functional acceptance criterion, but rather a technical implementation detail that is not relevant or visible to the user. Option C, the system must handle up to 500 unique orders per day, is not a functional acceptance criterion, but rather a non-functional requirement that describes a performance or quality attribute of the system.

Correct Answer: DE

When designing a data volume testing strategy for an Appian application that queries and writes to MySQL database, you should consider two key considerations: Testing with the correct amount of data should be in the definition of done as part of each sprint. Data volume testing is a type of testing that verifies how well an application performs when handling large amounts of data. Data volume testing is important to ensure that the application meets the performance and quality requirements of the users and stakeholders. By including data volume testing in the definition of done as part of each sprint, you can ensure that each feature or functionality of your application is tested with realistic data volumes before being delivered to production. This way, you can identify and resolve any potential issues or bottlenecks early in the development cycle, and avoid any surprises or delays later on. Data model changes must wait until towards the end of the project. Data model changes are changes that affect the structure or schema of your database, such as adding, modifying, or deleting tables, columns, indexes, or constraints. Data model changes are risky and costly to make, especially when dealing with large amounts of data. Data model changes can affect the performance, functionality, or integrity of your application and database. Therefore, data model changes must wait until towards the end of the project, when you have finalized your requirements and design decisions, and have minimized your data volume testing efforts. By waiting until towards the end of the project to make data model changes, you can reduce the impact and complexity of those changes, and avoid any unnecessary rework or regression. The other options are not as effective. Option A, data from previous tests needs to remain in the testing environment prior to loading prepopulated data, is not a key consideration for designing a data volume testing strategy, but rather a best practice for preparing your testing environment. Option B, large datasets must be loaded via Appian processes, is not a key consideration for designing a data volume testing strategy, but rather a technical implementation detail that may or may not be suitable for your application. Option C, the amount of data that needs to be populated should be determined by the project sponsor and the stakeholders based on their estimation, is not a key consideration for designing a data volume testing strategy, but rather an input or assumption that you need to validate before conducting your data volume testing.

Correct Answer: B

The error message indicates that the object with UUID ending in 18028821 has a dependency on another object with UUID ending in 7t00000i4e7a, which is missing from the target environment. Therefore, the first action to investigate the issue is to check whether the object with UUID ending in 7t00000i4e7a is included in this package or not. If not, then it should be added to the package or imported separately before importing the current package. Verified References: Appian Certified Lead Developer study guide, page 17, section "Importing and Exporting Applications".

Correct Answer: B

To build a large scale acquisition application for a prominent customer, you should design for multiple processes and forms, while minimizing repeated code. One way to do this is to create a common objects application, which is a shared application that contains reusable components, such as rules, constants, interfaces, integrations, or data types, that can be used by multiple applications. This way, you can avoid duplication and inconsistency of code, and make it easier to maintain and update your applications. You can also use the common objects application to define common standards and best practices for your application development teams, such as naming conventions, coding styles, or documentation guidelines. Verified References: [Appian Best Practices], [Appian Design Guidance]

Correct Answer: B

Deploying an object that is dependent on another object from a different application can cause errors and inconsistencies in the production environment. The best practice is to halt the production deployment and contact the other team for guidance on how to promote the object to PROD. The other team may have a different deployment schedule, or they may have some dependencies or customizations that need to be considered. By communicating with the other team, you can ensure that the object is deployed in a safe and coordinated manner, and avoid any potential conflicts or issues. Verified References: [Appian Deployment Guide], [Appian Best Practices]

Correct Answer: BD

The two advantages of having High Availability (HA) for Appian Cloud applications are:

B. Data and transactions are continuously replicated across the active nodes to achieve redundancy and avoid single points of failure. This is an advantage of having HA, as it ensures that there is always a backup copy of data and transactions in case one of the nodes fails or becomes unavailable. This also improves data integrity and consistency across the nodes, as any changes made to one node are automatically propagated to the other node. D. In the event of a system failure, your Appian instance will be restored and available to your users in less than 15 minutes, having lost no more than the last 1 minute worth of data. This is an advantage of having HA, as it guarantees a high level of service availability and reliability for your Appian instance. If one of the nodes fails or becomes unavailable, the other node will take over and continue to serve requests without any noticeable downtime or data loss for your users. The other options are incorrect for the following reasons:

A. An Appian Cloud HA instance is composed of multiple active nodes running in different availability zones in different regions. This is not an advantage of having HA, but rather a description of how HA works in Appian Cloud. An Appian Cloud HA instanceconsists of two active nodes running in different availability zones within the same region, not different regions.

C. A typical Appian Cloud HA instance is composed of two active nodes. This is not an advantage of having HA, but rather a description of how HA works in Appian Cloud. A typical Appian Cloud HA instance consists of two active nodes running in different availability zones within the same region, but this does not necessarily provide any benefit over having one active node. Verified References: Appian Documentation, section "High Availability".

Correct Answer: ABE

Indexing columns can improve the performance of queries that use those columns in filters, joins, or order by clauses. In this case, the columns that should be indexed are site_id, status, and priority, because they are used for filtering or joining the tables. Site_id is used to join the case and site tables, so indexing it will speed up the join operation. Status and priority are used to filter the cases by the user's input, so indexing them will reduce the number of rows that need to be scanned. Name, modified_date, and case_id do not need to be indexed, because they are not used for filtering or joining. Name and modified_date are only used for displaying information in the record grid, and case_id is only used as a unique identifier for each record. Verified References: Appian Records Tutorial, Appian Best Practices

Correct Answer:

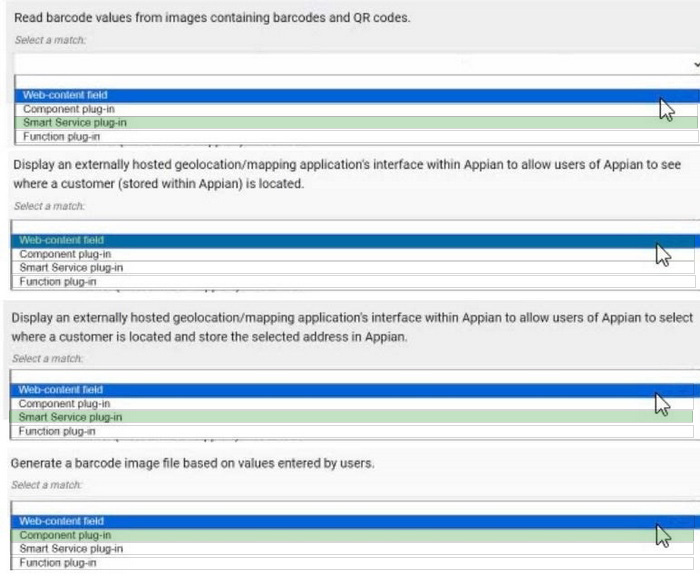

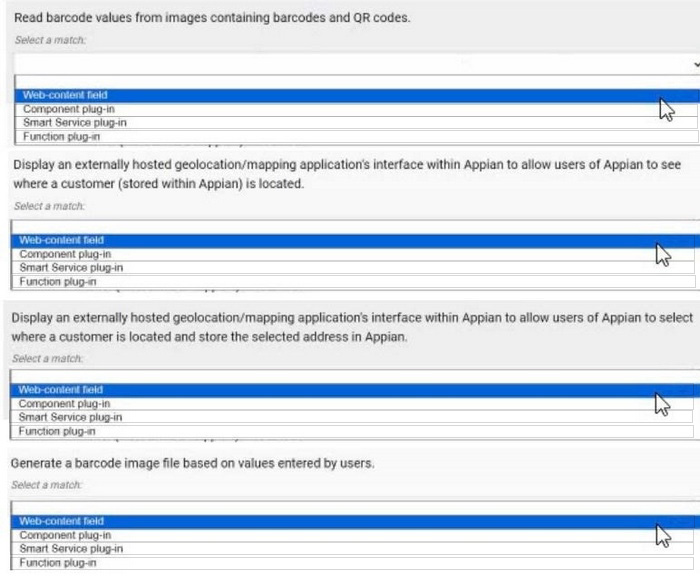

Requirement: Read barcode values from images containing barcodes and QR codes. Correct approach: C. Smart Service plug-in Exact explanation of correct approach taken from Appian Documentation: A smart service plug-in is a type of plug-in that allows you to create custom smart services that can be used in process models. A smart service can perform complex logic, interact with external systems, or manipulate data in Appian. A smart service plug-in can also leverage Java code to implement the functionality of the smart service. A smart service plug-in would be suitable for reading barcode values from images, as it can use Java libraries or APIs that can scan and decode barcodes and QR codes from image files. A smart service plug-in can also return the barcode values as outputs that can be used by other nodes or processes in Appian. A smart service plug-in can also be configured with input parameters, such as the image file, the barcode type, or the output format, that can customize the behavior of the smart service. A smart service plug-in can also have error handling and logging features that can handle any exceptions or failures that might occur during the barcode reading process. Requirement: Display an externally hosted geolocation mapping applications interface within Appian to allow users of Appian to see where a customer (stored within Appian)is located. Correct approach: A. Web-content field Exact explanation of correct approach taken from Appian Documentation: A web-content field is a type of user interface component that allows you to display web content from an external source in a SAIL interface. A web-content field would be suitable for displaying an externally hosted geolocation mapping applications interface, as it can embed the web content in an iframe and render it within the Appian interface. You can also pass parameters to the web content, such as the customer's location, using the url parameter of the web-content field. A web- content field can also interact with other components in the Appian interface, such as buttons, grids, or forms, using the postMessage API. This way, you can create a seamless user experience that integrates the external geolocation mapping applications interface with the Appian functionality. Requirement: Display an externally hosted geolocation mapping applications interface within Appian to allow users of Appian to select where a customer is located and store the selected address in Appian. Correct approach: A. Web-content field and C. Smart Service plug-in Exact explanation of correct approach taken from Appian Documentation: A web- content field and a smart service plug-in would be suitable for displaying an externally hosted geolocation mapping applications interface within Appian to allow users of Appian to select where a customer is located and store the selected address in Appian. A web- content field would be suitable for displaying the external geolocation mapping applications interface, as explained above. A smart service plug-in would be suitable for storing the selected address in Appian, as it can use Java code to receive the address data from the web content, validate it, and write it to a data store entity or a process variable. Requirement: Generate a barcode image file based on values entered by users. Correct approach: B. Component plug-in Exact explanation of correct approach taken from Appian Documentation: A component plug-in is a type of plug-in that allows you to create custom user interface components that can be used in SAIL interfaces. A component plug-in can also leverage Java code to implement the functionality of the component. A component plug-in would be suitable for generating a barcode image file, as it can use Java libraries or APIs that can encode values into barcode formats and generate image files. A component plug-in can also display the barcode image file in the Appian interface and allow users to download or print it. A component plug-in can also interact with other components in the Appian interface, such as text fields, buttons, or forms, using the a!refreshVariable() function. This way, you can create a dynamic user experience that updates the barcode image file based on the values entered by users.

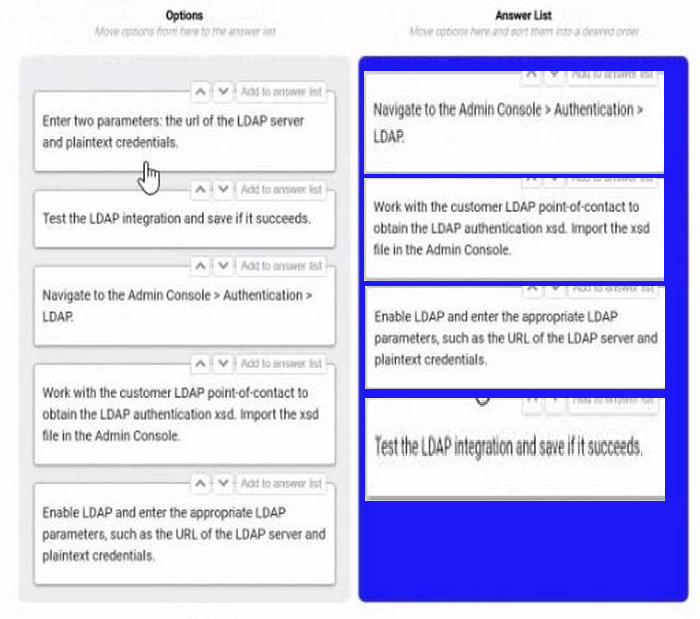

Correct Answer:
