350-601 Online Practice Questions and Answers

Refer to the exhibit.

What is the result of this series of commands?

A. It reboots the server immediately.

B. It verifies the firmware update on the server.

C. It activates the firmware on the next adapter boot.

D. It updates the firmware on adapter 1/1/1 immediately.

An engineer needs to install a new package on a Cisco Nexus 9000 Series Switch. What is the impact of running the install commit command on the switch?

A. The switch is restarted after the upgrade is complete.

B. The package is used after the switch is restarted

C. The package is used in the running configuration.

D. The previous package that was in use is deleted from bootflash.

The VMM domain is integrated between Cisco APICs and vCenter using a distributed vSwitch. The traffic must be blocked between a subset of endpoints in an EPG based on specific VM attributes and the rest of the VMs in that EPG. Which set of actions blocks this traffic?

A. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to "True"

2.

Set Intra-EPG Isolation to "Unenforced" for the EPG

3.

Set Intra-EPG Isolation to "Unenforced" for the uSeg EPG

B. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to "False"

2.

Set Intra-EPG Isolation to "Unenforced" for the EPG

3.

Set Intra-EPG Isolation to "Enforced" for the uSeg EPG

C. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to "True"

2.

Set Intra-EPG Isolation to "Enforced" for the EPG

3.

Set Intra-EPG Isolation to "Enforced" for the uSeg EPG

D. 1. Set Allow Microsegmentation under the EPG VMM Domain Association to "True"

2.

Set Intra-EPG Isolation to "Enforced" for the EPG

3.

Set Intra-EPG Isolation to "Unenforced" for the uSeg EPG

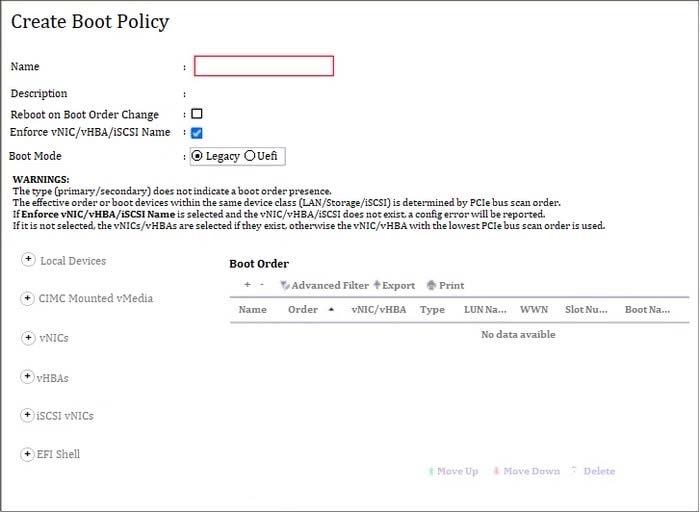

An engineer must configure the order in which the server attempts to boot from available boot device types using Cisco Integrated Management Controller (Cisco IMC). The engineer must change the boot order configuration during the setup and apply the new requirements multiple times. The requirement is to change the Cisco IMC actual boot order so it is different from the configured boot order. Which setting accomplishes this goal?

A. Enable the system to boot with the configured boot order.

B. Set the boot configuration directly through BIOS.

C. Apply UEFI Secure Boot for a nonsupported operating system.

D. Configure the legacy and precision boot order to be mutually exclusive.

Refer to the exhibit.

The communication between the web server and the application server experiences poor performance The network engineer must collect the traffic between the two servers, including the payload for more investigation The collected data must be sent from the remote site to the headquarters. Which action accomplishes this goal?

A. Configure an ERSPAN session between N5K-1 and N5K-2.

B. Configure a SPAN session between N5K-1 and N5K-2

C. Configure SNMP on N5K-1 to send the data to the monitor server

D. Configure NetFlow on N5K-1 to send the data to the monitor server

The Cisco UCS blade chassis must send SNMPv3 traps to a network monitoring system. The SNMP trap messages should be authenticated and have protection from closure. Which SNMP security privileged level should be configured?

A. noPriv

B. auth

C. noAuth

D. priv

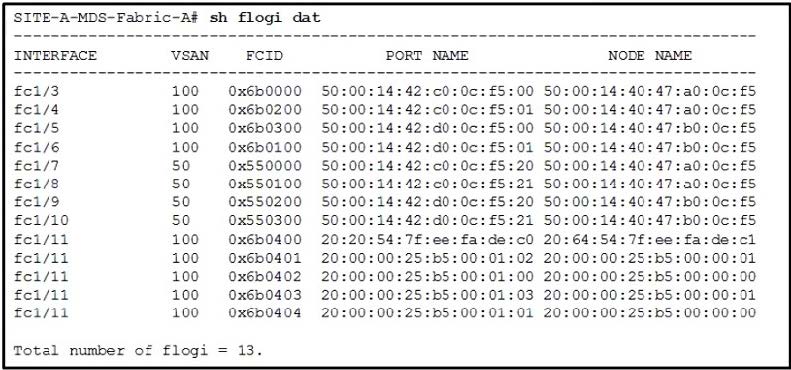

Refer to the exhibit

An engineer must configure fabric binding on a Cisco MDS 9000 Senes Switch to match the output

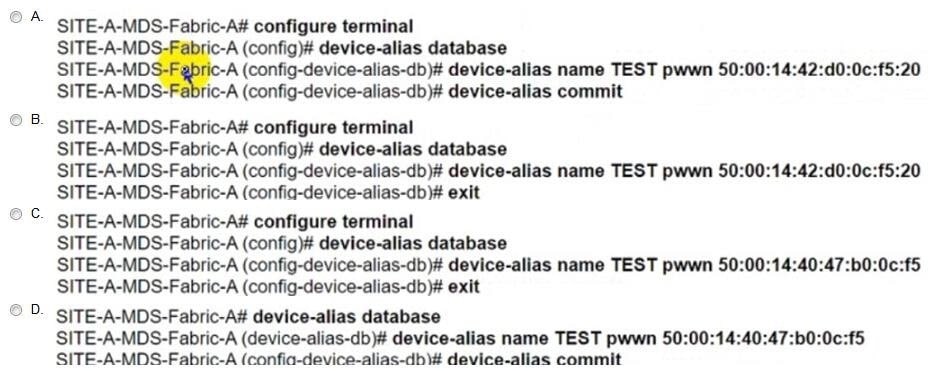

Which fabric database configuration accomplishes this goal?

A. Option A

B. Option B

C. Option C

D. Option D

Refer to the exhibit.

An engineer must configure a QoS policy that controls only vHBA traffic. Which policy must be used to meet this requirement?

A. Best Effort

B. Fibre Channel

C. Gold

D. Platinum

An engineer must connect a Cisco UCS appliance port directly to NFS and iSCSI storage devices. Which action should be taken to achieve this goal?

A. Configure NFS and iSCSI to use the same VLAN tag on the appliance port

B. Configure the appliance ports in access mode and apply VLAN tagging on the storage

C. Configure the appliance ports in trunk mode and apply VLAN tagging on the storage

D. Configure VLAN tagging on the storage and the Cisco UCS simultaneously

DRAG DROP

A network engineer must implement RBAC on Cisco MDS 9000 Series Multilayer Switches.

Drag and drop the Cisco MDS 9000 Series roles from the left onto the correct categories on the right.

Select and Place:
