3102 Online Practice Questions and Answers

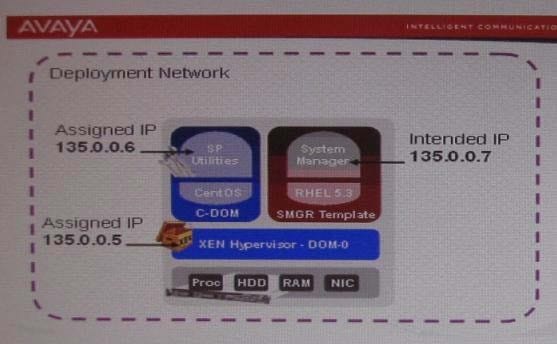

Which URL should be used to access the web console to install a System Manager template?

A. https://135.0.0.5/webconsole

B. https://135.0.0.6/webconsole

C. https://135.0.0.7/SMGR

D. https://135.0.0.7/webconsole

What is validated when the Transport Layer Security (TLS) handshake and mutual TLS authentication is performed between the SIP entity and Session Manager?

A. entity link

B. entity name

C. domain

D. certificate

Which two statements about backing up System Manager (SMGR) product and user profile data are true? (Choose two)

A. It is used when moving user details from one SMGR to another SMGR in the Avaya Aura eco- system.

B. It is made to a file location, either on or off the SMGR server.

C. It is made to preserve user and other configuration data during a SMGR upgrade.

D. It is used later when attempting to restore role definitions that may have become corrupted without affecting other configuration changes made after the backup was taken.

If two standalone session Managers and one standalone System Manager are going to be installed, how many IP Addresses will you need?

A. 3

B. 5

C. 6

D. 7

E. 9

Avaya products ensure that authentication credentials and file transfers are protected when sent across the network by using which three methods? (Choose three)

A. Telnet

B. HTTPS

C. Secure Shell (SSH)

D. Secure Copy (SCP)

E. HTTP

An IMS type feature server has been installed by another administrator team. They have also configured session manager to route all incoming calls for a user to be routed to the new feature server. It appears from running traces and capturing network traffic that Session does indeed route the User's incoming calls to the feature server, but that the feature server does not appear to take any action besides returning the request back to Session Manager. Which field may be incorrectly configured?

A. Application Handle

B. Entity Link port

C. Originating Application Sequence

D. Terminating Application Sequence

A routing policy administrator needs to create a policy that enables Session Manager to route to different destination based on different conditions. Time of day is one such condition. Which two Parameters may also be used by Session Manager when selecting the applicable routing policy? (Choose two.)

A. the location of the calling party

B. the registration state of the destination

C. the SIP domain of the called party

D. the origination or termination application sequences that will be applied to call, ignoring what the applications themselves may do

Shortly after an installation, SIP users in abc.com domain are registered but not able to call H.323 users in training.com domain. When you run traceSM you see a "403 Forbidden" error when users try to call each other. What is the issue and which troubleshooting procedure will help you to identify and isolate the problem?

A. Replication Failure: run initDRS to reinitialize the synchronization between system and session manager.

B. Network Issue: status the Bandwidth usage to each location and make sure Call Admission Control is activated.

C. Misconfigured Communication profile: Sip Users have not been associated to the CM endpoint.

D. Incorrect Routing: verify domains were properly configured in System Manager, verify an adaption to modify the secure/destination domain was created and applied to the appropriate sip entity.

Session Manager (SM) has been successfully installed. You have configured the Session Manager instance and it has passed all tests. However, when you attempt to test a call, it fails and you receive a 503 service Unavailable - System Busy response. What is a cause for the call to fail and how can it be fixed?

A. There is a non-bidirectional FQDN resolution between SM and System Manager (SMGR). Verify that either the SMGR or the SM has updated DNS records or the hostnames are added to the /etc/host file on the SM and the SMGR.

B. The Security Module service is not running. Verify the status of the Security Module and reset it.

C. The Session Manager is not accepting new requests. Verify the System Administration Management State is set to Accept New Service.

D. The SIP user attempting to make the call has not registered properly with the Session manager. Verify the communication profile of the user has Session Manager Profile defined.

E. The Session manager is not accepting new requests. Verify the system Administrative Service state is set to Accept New Service.

On a SIP Entity that is defined as type session Manager, what should be defined?

A. an adaptation

B. listening ports

C. an outbound proxy

D. a credential name
