300-810 Online Practice Questions and Answers

DRAG DROP

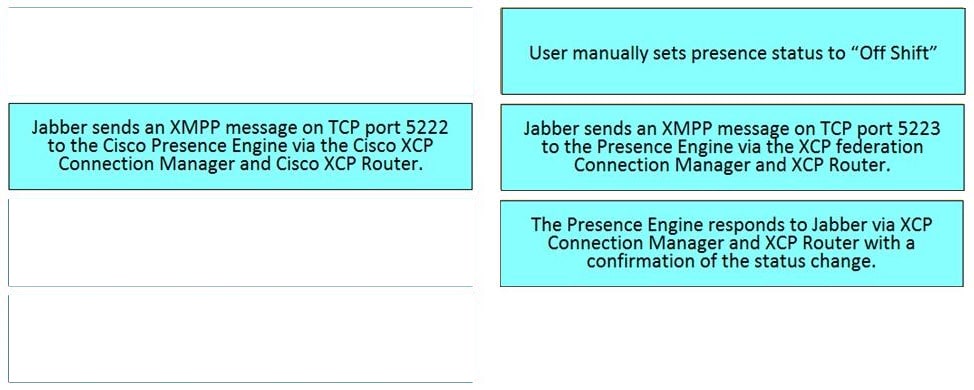

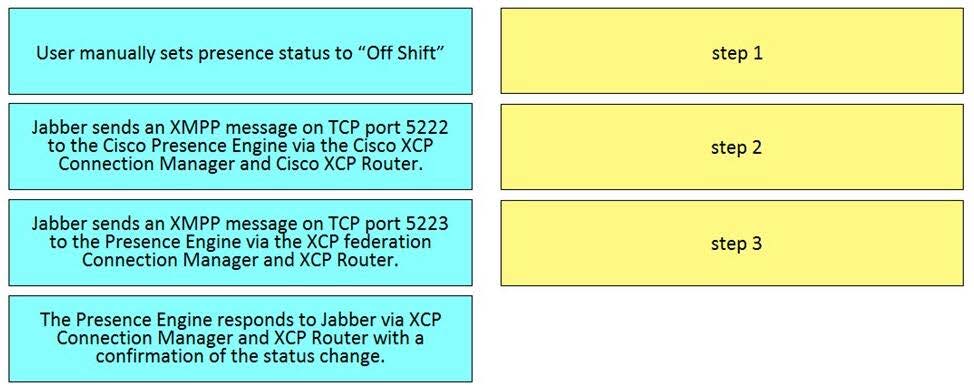

Drag and drop the steps from the left into the correct order on the right that describes the flow of presence updates when a user manually sets the presence status in Cisco Jabber. Not all options are used.

Select and Place:

DRAG DROP

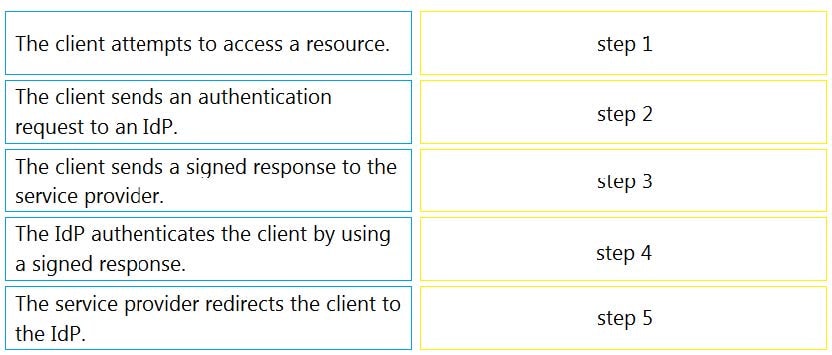

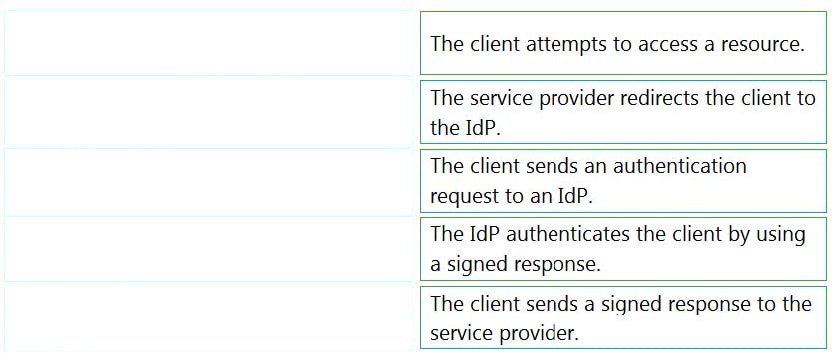

Drag and drop the steps for SAML SSO authentication from the left into the order on the right.

Select and Place:

An engineer needs to configure calendar integration between Microsoft Exchange and a Cisco IM and Presence server.

The engineer created the resource mailboxes and now needs to add impersonation.

Which command accomplishes this task using the Exchange Management Shell from Microsoft Exchange?

A. Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -Group (Get-User -Identity User | select-Group) .identity -ExtendedRights Receive-As

B. Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -Group (Get-User -Identity User | select-object) .identity -ExtendedRights Receive-As

C. Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -Policy (Get-User -Identity User | select-object) .identity -ExtendedRights Receive-As

D. Add-ADPermission -Identity (Get-OrganizationConfig) .DistinguishedName -User (Get-User -Identity User | select-object) .identity -ExtendedRights Receive-As

The calendaring integration on the Cisco IM and Presence server has not been functioning, which results in the "in a meeting" status not working in Cisco Jabber. Which service log should the engineer use to troubleshoot this issue?

A. Cisco XCP Connection Manager

B. Cisco Jabber Problem Report

C. Cisco Presence Engine

D. Cisco SIP Proxy

Which MFA solution can be integrated with Cisco Jabber via SAML and used independently of an ldP?

A. Okta

B. Cisco DUO

C. PingFederate

D. Microsoft ADFS

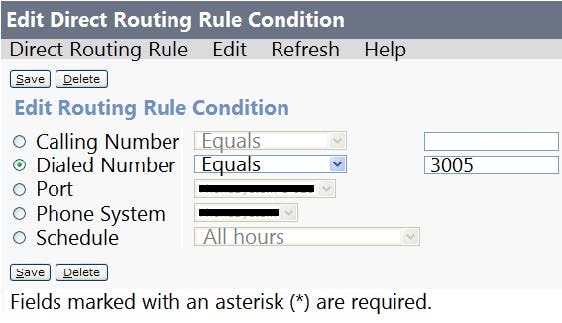

Refer to the exhibit.

The associated directory number is configured with Call Forward All to voicemail in Cisco UCM. When users call the directory number they hear the opening greeting.

Which action should be taken to correct this issue?

A. Modify the rule to a Forward Routing Rule.

B. Modify the Calling Number to 3005.

C. Modify the Dialed Number condition from "Equals" to "In".

D. Modify the Call Forward All to the voicemail pilot.

Refer to the exhibit.

Cisco UCM is integrated with Cisco Unity connection via a SIP truck and is configured using a globalized dial plan (directory number are configured with "*"). Using cisco best practices, which implementation allows call transfers to internal directory numbers but not to PSTN numbers?

A. remove PSTN-PT from Voicemail_CSS

B. change the order of partitions to put GLOBAL-INTERNAL-PT first in Voicemail_CSS

C. create a BLOCK-PSTN-PT partition and add it to Voicemail CSS

D. block pattern +’ in the Cisco Unity restriction table

An engineer is configuring a customer's environment for Jabber user over mobile and remote access. The customer's internal domain. Which Jabber parameter defines the external service discovery domain statistically?

A. UPN discovery enabled

B. exclude services

C. services domain

D. voice services domain

Which statement describes a role of AXL communications in the BLF Plug-in Service of the Cisco Unified Attendant Console?

A. The AXL communications allow registered attendants to log in to Cisco Unified Communications Manager and receive calls.

B. The AXL communications enable Device Resolution Manager to resolve the device statuses of operator and system devices.

C. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified Attendant Console versions match.

D. The AXL communications is required after installation to verify that the specified CTI manager or managers and Cisco Unified CM versions.

A collaboration engineer is troubleshooting an issue with Cisco Jabber for Windows clients Users in a new branch location report that 'cannot locate server is displayed when they launch the client When the engineer manually configures the server settings on a client, the dient logs in successfully. The Cisco IM and Presence servers are located across the WAN at the corporate HQ.

Which action resolves the issue?

A. Reinstall the Jabber clients with UPN_DISCOVERY_ENABLED=false

B. Add a firewall rule to allow TCP/8443 from the branch to HQ

C. Add a _collab-edge_Us.company com SRV record to the branch DNS server

D. Add a _cisco-uds_tcp company com SRV record to the branch DNS server
