300-625 Online Practice Questions and Answers

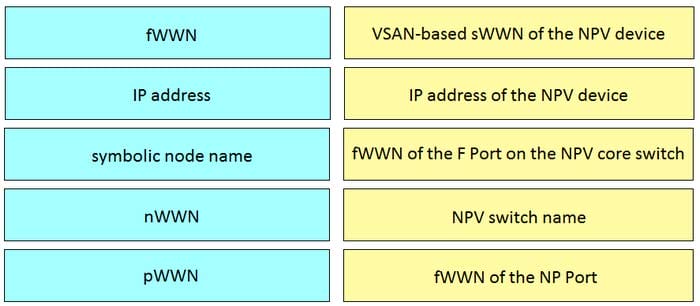

DRAG DROP

Drag and drop the items from the left onto the correct descriptions on the right. Not all items are used.

Select and Place:

Which Cisco NX-OS command displays the VSAN that is associated with each FCID?

A. show fcdomain

B. show fc2 plogi

C. show vsan database

D. show flogi database

Which configuration is available only in Cisco DCNM-SAN Advanced mode?

A. IVR

B. VMpath configuration

C. zoning

D. template-based provisioning

Refer to the exhibit.

An engineer is configuring Inter-VSAN routing for two Cisco MDS switches. The FSPF cost between the switches is 500, and the Cisco MDS core virtualizes an IVR NAT domain as shown. Which statement about the topology is correct?

A. The MDS-Core simulates an IVR NAT, and the FSPF cost is 500.

B. The MDS-Core simulates an IVR NAT, and increases the cost to 501.

C. The MDS-Core simulates an IVR NAT, and decreases the cost to 400.

D. The MDS-Core simulates an IVR NAT, and increases the cost to 600.

Refer to the exhibit.

What is the result of the configuration?

A. No-drop CoS values are advertised by the DCBX.

B. LFC is prioritized over PFC on Ethernet 1/10.

C. PFC operates on Ethernet 1/10 regardless of the capability of the peer.

D. PFC fails to operate properly unless LFC is disabled on Ethernet 1/10.

Which benefit of upgrading to the Cisco DCNM server-based advanced feature license for a Cisco MDS switch is correct?

A. The license can be reassigned when a switch is replaced with a newer version within the same product family.

B. The license can be assigned to either server MAC address or switch serial number.

C. An unlimited number of devices can be added to the list of licensed devices.

D. The license can be reassigned when the switch is replaced with a Cisco Nexus switch.

Refer to the exhibit.

A network engineer created a new user that uses the VSAN-Admin role on a Cisco MDS switch so a new colleague can manage the VSANs configured on the switch. Which action is required for the configuration to give permission to the new colleague?

A. permit vsan 1-1000 must be configured as rule 5.

B. permit vsan 1-1000 must be configured as rule 1.

C. permit vsan 1-1000 must be configured under the VSAN policy deny.

D. permit vsan 1-1000 must be configured under the VSAN policy allow.

Refer to the exhibit.

A network engineer must configure the SAN telemetry streaming feature to stream statistics form a Cisco MDS 9000 Series Switch to two external receivers with the IP addresses 192.168.1.4 and 192.168.1.5. Which two configurations accomplish this configuration? (Choose two.)

A. Add IP address 192.168.1.5 port 50005 protocol gRPC encoding GPB under destination-group 100.

B. Add IP address 192.168.1.5 port 50005 protocol gRPC encoding GPB under destination-group 300.

C. Add dst-grp 200 under subscription 100.

D. Add dst-grp 300 under subscription 200.

E. Add dst-grp 100 under subscription 200.

Refer to the exhibit.

Which command is used to determine which switch has the lock?

A. show fcs ie vsan

B. show zoneset active

C. show zone status

D. show flogi database

A storage administrator is connecting two previously configured switches to make a single fabric. When the E Ports are connected, the administrator sees a ZONE MERGE FAILURE message referring to the zoneset for VSAN 10 on each switch. Which command should the administrator use to allow these switches to work together?

A. zoneset import interface fc1/1 vsan 10

B. zoneset distribute full vsan 10

C. zoneset overwrite-control vsan 10

D. zoneset copy active-zoneset full-zoneset
