Two routers are physically connected to each other over Ethernet port 1/1/1. Review the configuration information shown below. What state should the OSPF neighbor be in?
A. INIT
B. EXCHANGE
C. EXSTART
D. FULL
E. No OSPF neighbor
Which of the following debug statements can be used to troubleshoot if the OSPF adjacency is staying at xstart state? Select two answers.
A. Debug router ospf rtm
B. Debug router ospf packet dbdescr
C. Debug router ospf neighbor
D. Debug router ospf packet hello
E. Debug router ospf spf
Based on the following configuration, which of the following statements are true? Choose all that apply.
A. No OPSF adjacency found on Node 1
B. Full OSPF adjacency between Node-1 and Node-2
C. Full OSPF adjacency between Node-1 and Node-3
D. Full OSPF adjacency between Node-1 and Node-4
E. OSPF is enabled on Node 1
Two routers are physically connected to each other with ISIS configured. No ISIS adjacency can be found on both routers. Ping works fine on the local and the remote interface addresses on both routers. Review the confguration information shown below. Which of the following statements best describe the cause of the problem? Select one answer only.
A. The ISIS interface level configured does not match the ISIS level capability supported on the routers
B. The ISIS authentication check is enabled but there is no authentication type and password configured
C. ISIS Area addresses are not configured on both routers
D. L1 wide Metrics are disabled on the routers
E. ISIS Circuit id does not match on Node-1 and Node-2
What MPLS tunnel label(s) will be used in the data packet traveling on LSP toR4 FRR leaving from Node 3 to Node 4?
A. 131069 131068
B. 131068 3
C. 131069
D. 131068
E. No label is used in the data packet

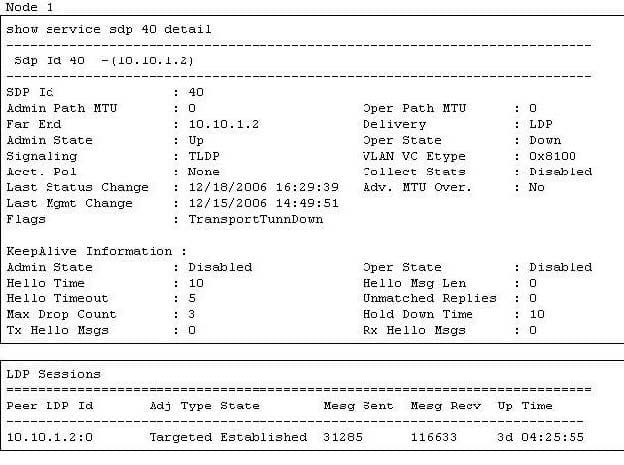

Due to same VPLS mis-configuration, traffic (e.g.ping) is not work between PC1 and PC 2. Choose the best explanation for the problem.
A. MTU is not configured on all sdp
B. SDP id has to match on all three nodes
C. STP has to be enabled on all three nodes
D. No SAP is configured on Node-2
E. Spoke-sdp has to be used on all three nodes
Which command is used to view alarms of all severity levels on the Alcatel 7x50?
A. Show log log-id 99
B. Show alarm
C. Show log filter-id 1
D. Show log log-id 100
E. Show log 99
Which files have to exist on Compact Flash 3 during system initialization on the Alcatel 7x50?
A. iom.tim
B. boot.ldr
C. cpm.tim
D. config.cfg
E. bof.cfg
A policy is configured to redistribute four active static routes into ISIS. No ISIS route is received on the far end, what is the cause of the problem?
A. Action accept?has to be configured for entry 10
B. Default-action has to be configured as accept
C. Import policy should be configured under ISIS instead of export policy
D. Within entry 10, to protocol isis has to be configured
E. A prefix list has to be configured to filter the routes

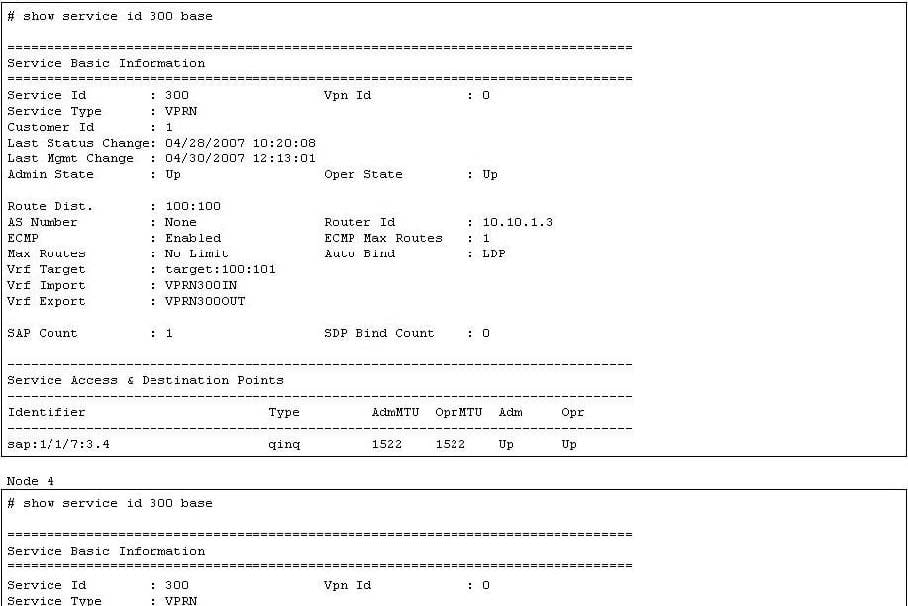

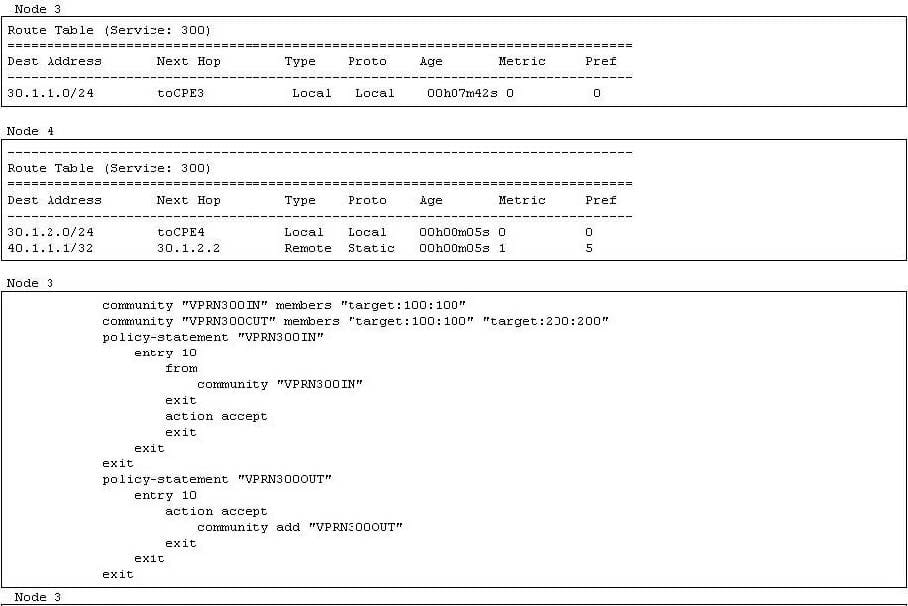

VPRN 300 is configured on Node 3 and Node 4 with LDP and MP-BGP. No route can be found in the VPRN 300 routing table on both Nodes. What is the cause of the problem?
A. No static route configured on Node 4
B. No LDP defined in the VPRN configuration on both nodes
C. VRF-target does not match on Node 3 and Node 4
D. Route-distinguisher configuration is missing on Node 3 and Node 4
E. Encapsulation type on the SAP does not match on Node 3 and Node 4
